Manual Plastic Butterfly Valves

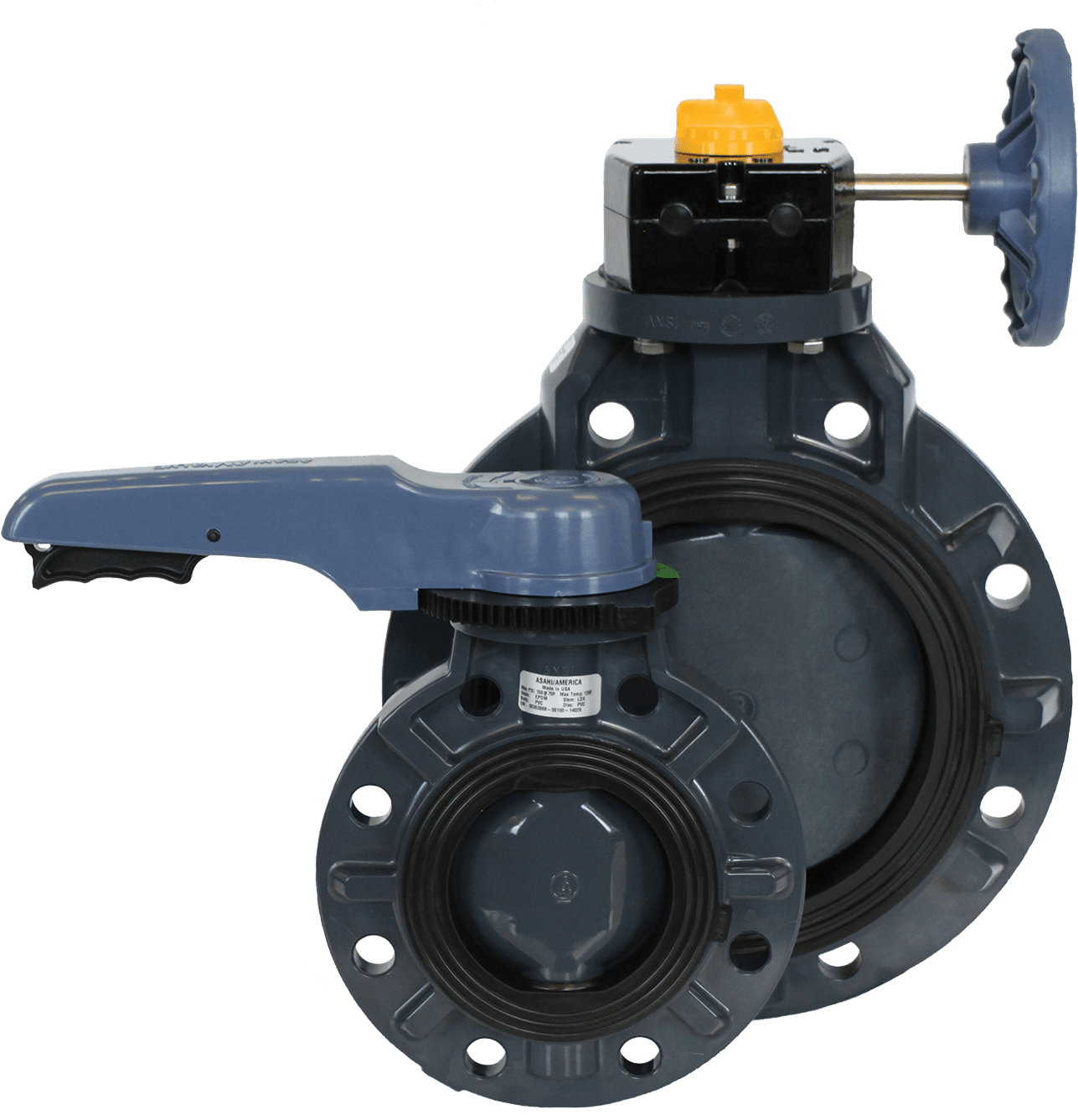

Pool Pro® Butterfly Valve (1-1/2"- 12")

The Pool Pro® butterfly valves are the first valve designed exclusively for the pool service industry. This cost-effective valve can be completely submerged in chlorinated water. The Pool-Pro's unique blue handle identifies that this valve is ideally suited for use in chlorinated water applications. The Pool-Pro® valve's durable PVC-constructed body provides superior corrosion resistance and weighs less than similar valves made of metal.

The Pool Pro® butterfly valve provides exceptional, reliable performance, and is virtually maintenance-free. Easy to install, the valve's self-gasketing seat design eliminates the need for mating flange gaskets. The Pool Pro® comes with an ISO mounting pad, allowing for easy field-mounting of accessory options, including stem extensions, gear operators, and electric or pneumatic actuation. Asahi/America's Pool Pro® butterfly valve is offered in sizes ranging from 1-1/2" to 12".

Product Advisory - Butterfly Valves Lever Handles

Ideal Applications Include:

Isolation valves, control valves, water features, fountains, fresh water aquariums, swimming pools

Specifications

Size:

1-1/2" - 12"

Bodies:

PVC

Seats:

EPDM

Seals:

EPDM

Models:

Wafer Style

Operators:

Lever and Gear

Discs:

PVC

Stems:

Stainless Steel S32101

Features/Benefits

  • Submersible - Material of construction allows complete submersion of valve body as all components are compatible with chlorinated water.
  • PVC/PVC/EPDM construction - Ideal for Chlorinated water applications.
  • Blue handle design: Blue handle designates the proper valve is in place for chlorinated water applications.
  • Stainless steel S32101 non-wetted stem: Stem does not come in contact with the media but is still compatible if in direct contact.
  • Thermoplastic material: Lightweight construction allows for easy installation.
  • ISO mounting pad: Allows for field mounting of accessories including stem extensions, gear operators & automation.
  • 18 position throttle plate: For lever handle style
