Compression Fittings: EM-Technik 1C

2011-emtechnik-Logo-simplybetter-RGB-800px

Series 1C Compression

The flexible tube is pressed onto the connecting sleeve integrated onto the connector body.

The flexible tube is secured using a sealing ring and a cutting ring locking is via a knurled nut. Available in PFA

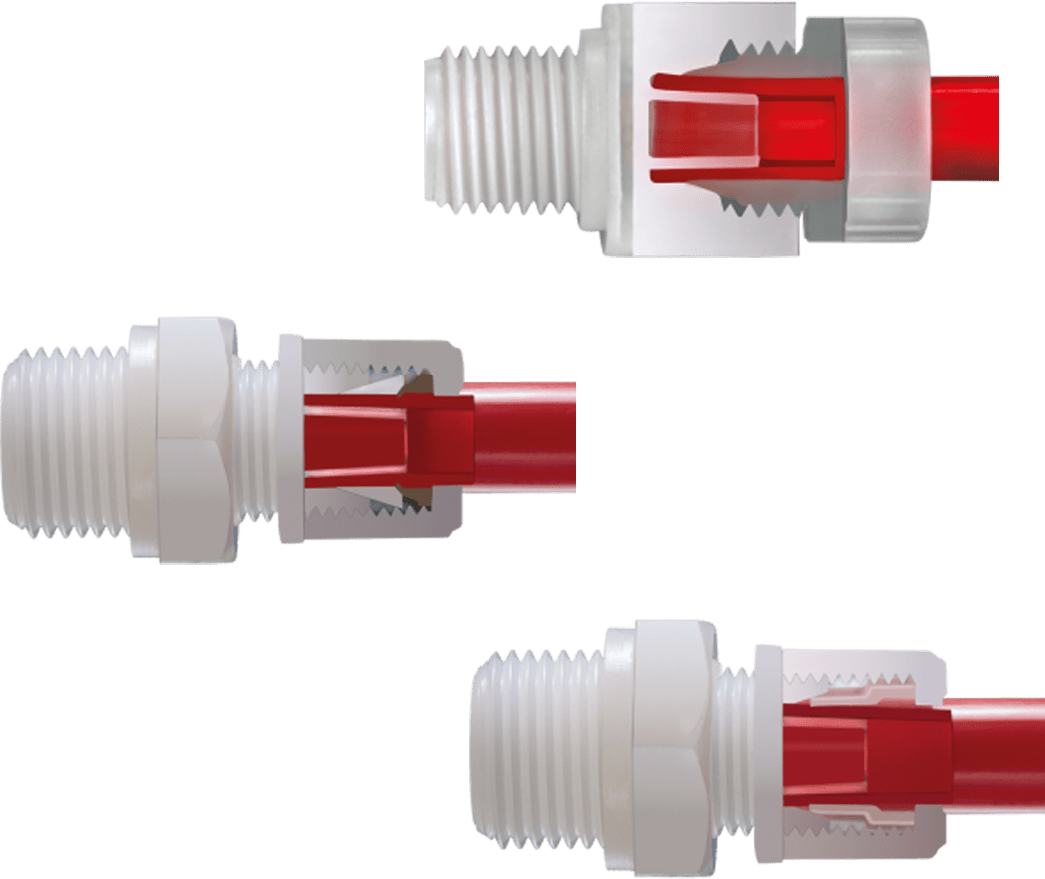

Series 1C connection type: insert the rigid tube or plastic pipe over the integrated connecting sleeve to form a friction-locked and leak-proof connection that can be detached at any time. The sealing ring forms a seal for the connection. By tightening the knurled nut, the cutting ring presses against the tube or pipe to fix it in place.

Ideal Applications Include:

Labs and Medical

Specifications

Available Size Range*:

2 x 4mm through 18 x 20mm

Available Materials*:

E-CTFE, Nylon

Standard Materials:

PP, PVDF, PFA

Standard Size Range:

  • 1/8" x 1/4"
  • 1/4" x 3/8"
  • 3/8" x 1/2"
  • 1/2" x 3/4"

Features/Benefits

  • Easy Install, No tools Required!
  • Reuse Existing Tubing Repeatedly
  • High Temperature and Pressure Rating
  • Bio/Pharm & Analytical Industry Standard
