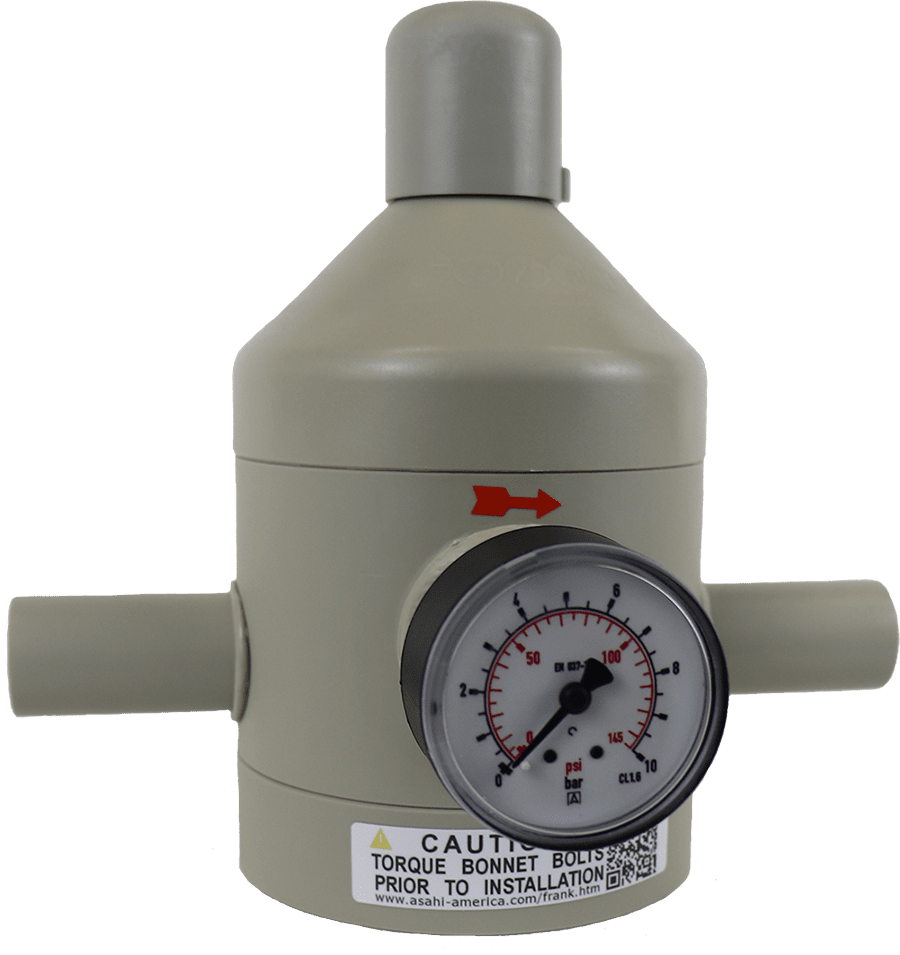

V82/182 Pressure Regulator

20 - 110mm (1/2" - 4")

The V82/182 pressure regulator controls upstream pressure fluctuations to critical points of use. The regulator has no wetted metal components, includes an integral pressure gauge isolated from the mediaand can be adjusted in-line under pressure.

Data Sheet

Ideal Applications Include:

UPW, WFI, RO/DI Systems, Semiconductor, Photovoltaic, Pharmaceutical, Biotech, Institutional, Laboratory Research, Nanotech

Supply Range

Body Material:

PolyPure® PPn & PP-Pure® Pigmented PP

Seals:

EPDM or PTFE

Valve Size:

20 - 110mm (1/2” - 4”)

Diaphragm:

PTFE backed EPDM, or EPDM

Maximum Pressure:

150psi @ 68° F

Features/Benefits

  • Most extensive size range in the industry
  • Process fluid is isolated from mechanical parts
  • Adjustable under working pressure
