Manual Plastic Diaphragm Valves

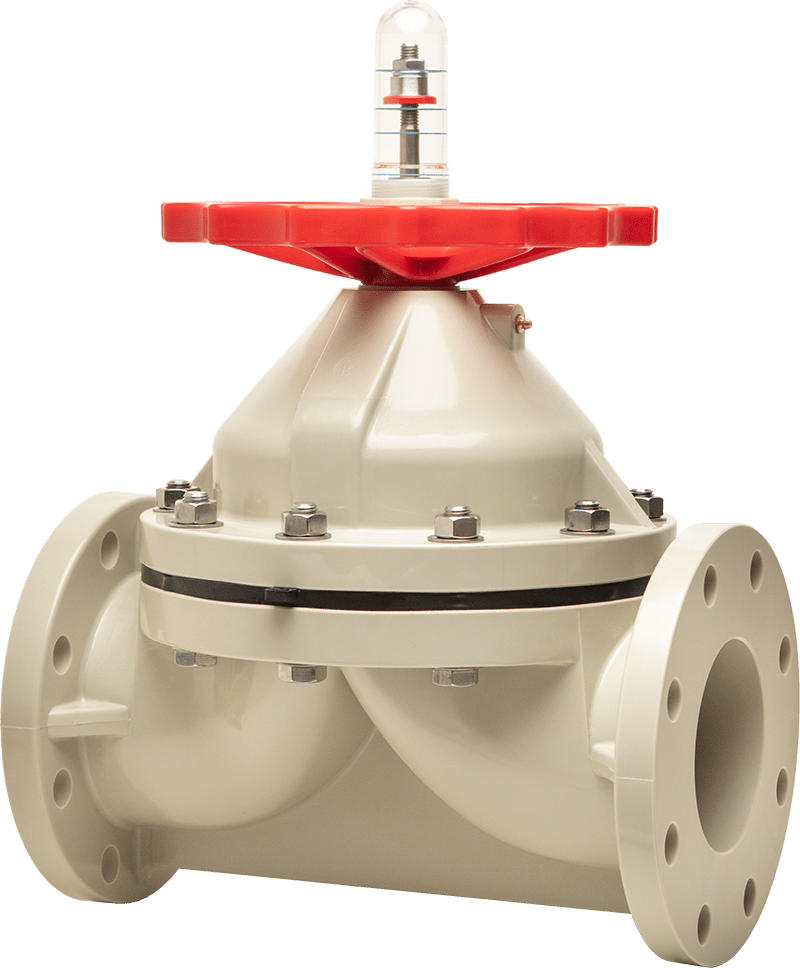

Type-15 Diaphragm Valve (5" – 6")

Asahi/America's Type-15 diapgragm valve is a multiturn valve that is good for flow control and use with viscous/slurry lines due to their high resistance to clogging. These valves have a uniquely designed body and bonnet, as well as a diaphragm with new sealing designs, by computer aided analysis for superior sealing.

Resources

Data Sheet

Specifications

Ideal Applications Include:

Throttling, slurry lines, chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, semiconductor manufacturing

Specifications

Sizes:

5" – 6"

Body:

PVC, PP, PVDF

Bonnet:

PVC, PP, PPG, PVDF

Diaphragm:

EPDM, 3-Layer EPDM/PVDF/PTFE, Nitrile

Features/Benefits

  • Bubble tight sealing even in applications such as slurries or suspended particles, bonnet seals to protect internals from corrosive environments, built-in travel stop to prevent over-tightening or compressive strain on diaphragm, position indicator at top of valve, PVDF gas barrier (protects EPDM backing from gas permeation) standard on all valve with PTFE diaphragm.
  • Flanged face-to-face dimensions are equivalent to those of Type-G diaphragm valve
  • Rugged body and bonnet are of solid thermoplastic for maximum corrosion resistance
  • Bubble-tight sealing, even in applications such as slurries or suspended particles
  • Weir design for excellent throttling
  • Uniquely designed body and bonnet together with diaphragms of new sealing designs by the state-of-the-art computer aided analysis for superior sealing
  • Bonnet seals to protect internals from corrosive environments
  • Built-in travel stop to prevent diaphragm from being over-tightened
  • Indicator at the top for valve position and prevention of over-tightening
  • PVDF gas barrier, which protects EPDM backing cushion from gas permeation, is standard for all valves with PTFE diaphragm

Actuation

  • For 5" - 6" diaphragm valves, contact factory
