Manual Plastic Butterfly Valves

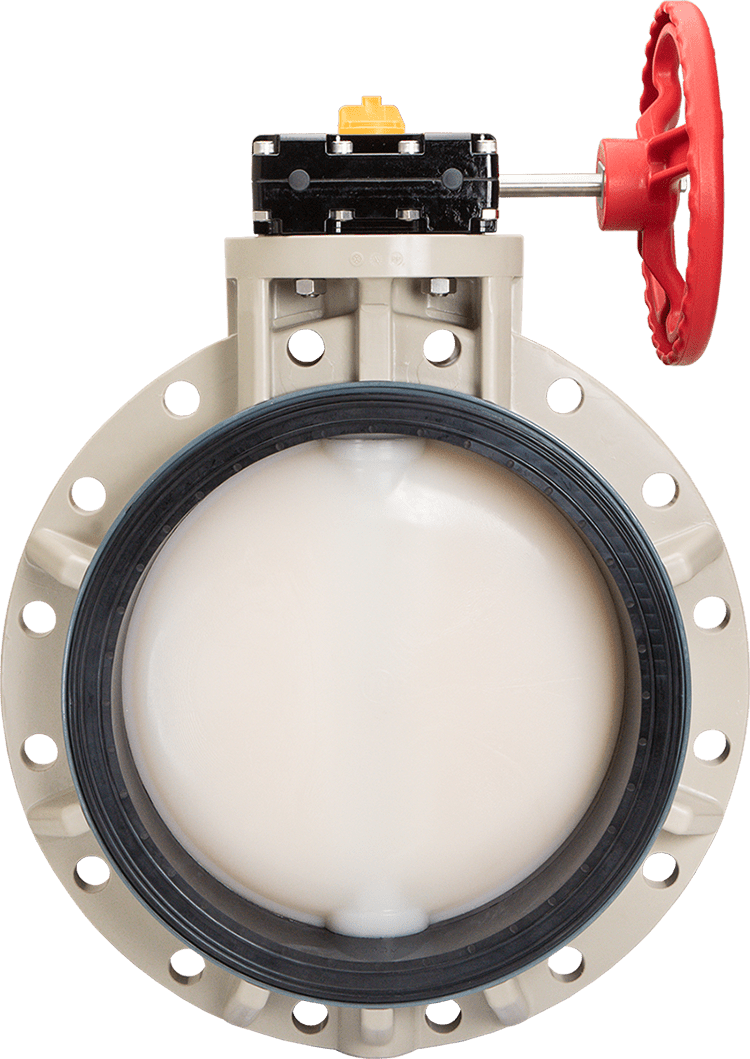

Type-56 Butterfly Valve (16")

Type-56 butterfly valves are quarter turn plastic valves with equal percentage type flow characteristics. They provide moderate flow control and therefore can be used for both on/off and modulating service. Good tolerance to suspended solids but not recommended for use with slurries or debris. The Type-56 butterfly valve is well suited for a wide variety of fluid flow applications. Can be pneumatically or electrically actuated.

Resources

Data Sheet

Specifications

  • Specifications - Type-56 Butterfly Valve
Ideal Applications Include:

Isolation valves, control valves, chemical processing, water treatment, water features, fountains, aquariums, landfills, swimming pools, power plants, mining, transportation

Specifications

Size:

16"

Bodies:

PP, PVDF

Seats:

EPDM, FKM, or Nitrile

Seals:

Same as seating material

Models:

Wafer Style

Operators:

Gear

Discs:

PP, PVDF

Stems:

403 and 316 stainless steel, titanium, hastelloy C®‡, etc

Features/Benefits

  • Standard model 16" has PP body and PP disc as standard
  • 403 stainless steel shaft has full engagement over the entire length of the disc and is a non-wetted part, totally isolated from the media
  • Only solid and abrasion-resistant plastic disc and elastomeric liner are wetted parts
  • ISO bolt circle on top flange– no body or stem modifications required for accessories or activiation
