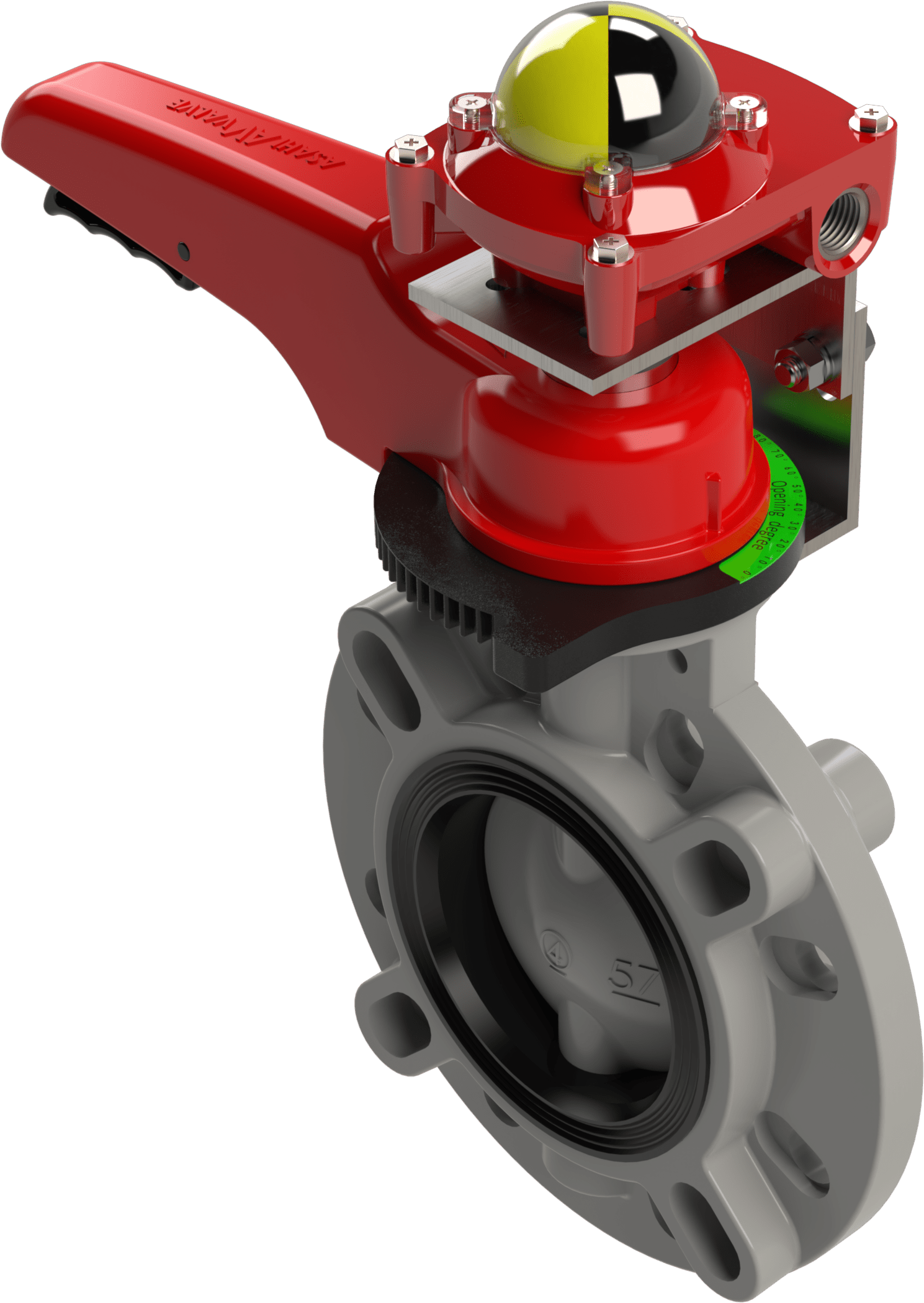

P-Series Limit Switch for Butterfly Valves
Click to enlarge

Butterfly Valve Options

P-Series Limit Switch for Butterfly Valves

Compact type 4X limit switch for remote position indication of manual valves includes 2-spdt mechanical switches, terminal strip, visual beacon, enclosure, factory mount and testing.

Resources:

Data sheet

Ideal Applications Include:

Chemical Processing, Water & Wastewater, Landfills, Irrigation, Food Processing, Mining

Specifications:

Temperature:

-20° C to 80° C

Weight:

1.2 lbs

Shaft, Fasteners, Bracket:

304 stainless steel

Indicator Cover:

Polycarbonate

Limit Switches:

16A mechanical switches

Voltages:

AC: 20 – 250V
DC: 10 – 300V

Housing:

Aluminum

  • CPVC Lever Operated Butterfly Valve with P-Series Limit Switch

  • PVC Lever Operated Butterfly Valve with P-Series Limit Switch

  • CPVC Gear Operated Butterfly Valve with P-Series Limit Switch

  • PVC Gear Operated Butterfly Valve with P-Series Limit Switch

  • Low cost valve position indication solution
  • Thermally bonded & baked powder coating finish enclosure
  • 2-SPDT mechanical switches rated at 16 amps
  • Indication of open/closed status with highly visible globe
  • Easily adjustable cams for simple field calibration. No tools required.
  • Two 1/2″ NPT conduit entries
  • Inductive limit switches
