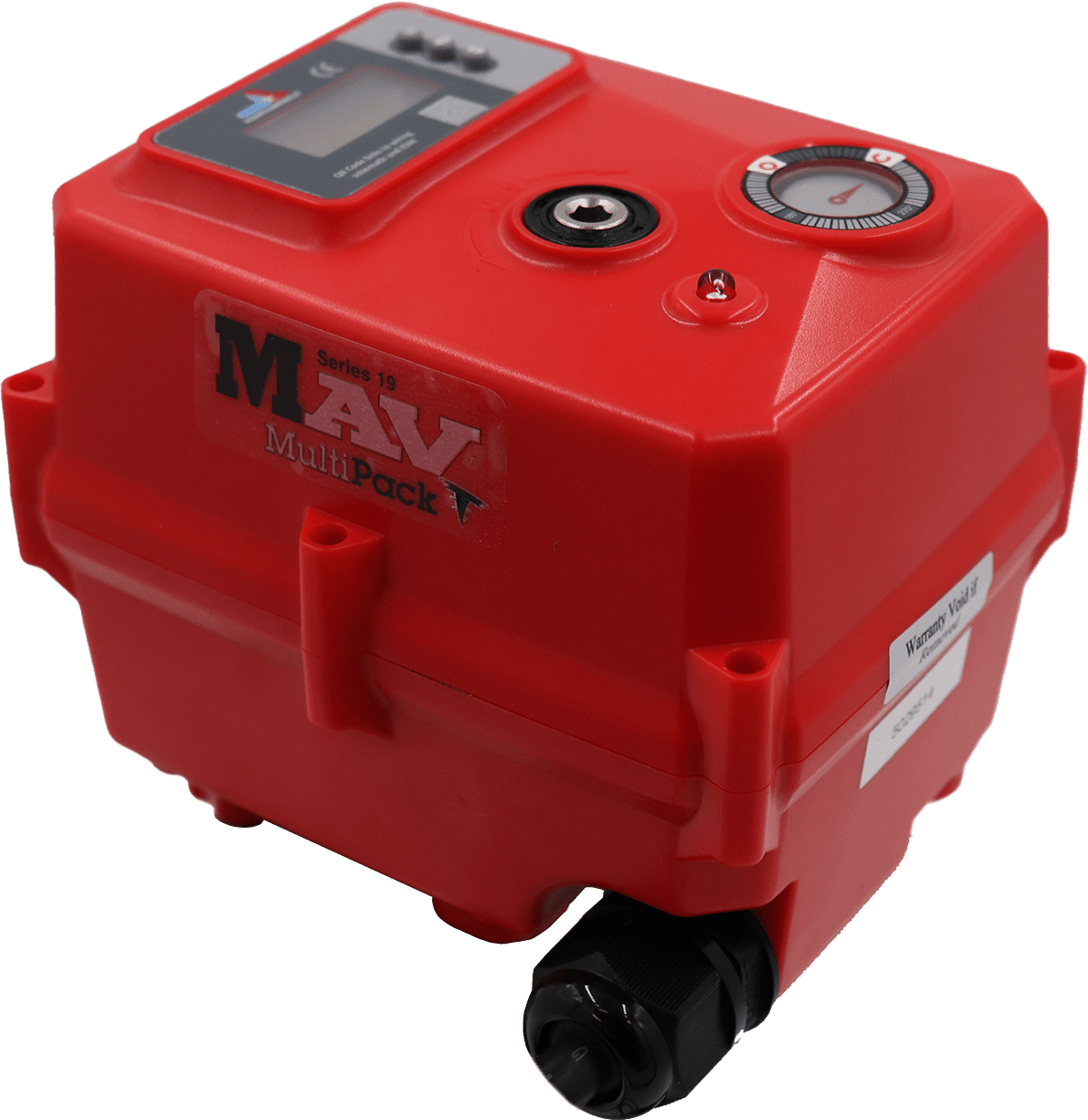

Series 19 MAV Modulating Electric Actuators

Type-14 Diaphragm Valve:

• Compact: Perfect for OEM and skid manufacturers
• OLED Screen: Displays input command, position status, alert conditions
• Push Buttons: Used to calibrate, local controls
• Multi-voltage: 24 VAC/VDC
• Motor: Reversing, brushless DC motor
• Gear Train: Permanently lubricated steel gears
• Corrosion Resistant Enclosure: NEMA 4X PC/PET enclosure with stainless steel trim
• Electrical Connection: NEMA 4X cable gland with two-meter cable
• Visual Position Indication: Flat disc position indicator
• LED Position Indication: RED closed, GREEN open, BLUE fault
• Manual Override: Manually cycle valve via electroless nickel-plated hex key
• Selectable Control Signal: User can select 4-20 mA, 0-20 mA, 0-10 VDC, 2-10 VDC, or 1-5 VDC (size 20 is specifically a current control signal or a voltage control signal)
• Reverse Acting: User can select standard operation or reverse acting
• Selectable Fail Position: If control signal is lost, the unit can be calibrated to fail as is, fail open, or fail close
• Transmitter: Current or voltage transmitter (matching the control signal) is standard equipment
• Alarm Contacts: Dry contacts rated 0.1 Amp @ 250 VAC, 0.5 Amp @ 30 VDC for alarm status (over torque, as an example)
• QR Code: Links to user manual; includes wiring schematic
• Space Heater: Internally wired to limit condensation
• CE Compliant: All actuators are CE labeled and compliant
• 70% Duty Cycle: Extended duty cycle is ideal for high cycling applications
• Simple Wiring: Wiring technique is the same for all voltage units
• Local Controls: Used with OLED and push buttons, a user can locally open or close units via password

Type-C Gate Valve:

• Compact: Perfect for OEM and skid manufacturers
• OLED Screen: Displays valve position, alarms (such as an over torque condition)
• Push Buttons: Used to calibrate/adjust end positions, local controls
• Multi-voltage: 95 VAC to 265 VAC, 24VAC/VDC
• Motor: Reversing, brushless DC motor
• Gear Train: Permanently lubricated steel gears
• Corrosion Resistant Enclosure: NEMA 4X PC/PET enclosure with stainless steel trim
• ISO mounting configuration
• Electrical Connection: NEMA 4X cable gland with two-meter cable
• Visual Position Indication: Flat disc position indicator
• LED Position Indication: RED closed, GREEN open, BLUE fault
• Manual Override: Manually cycle valve via electroless nickel-plated hex key
• Auxiliary Contacts: Open and closed dry contacts rated 0.1 Amp @ 250 VAC, 0.5 Amp @ 30 VDC
• Alarm Contacts: Dry contacts rated 0.1 Amp @ 250 VAC, 0.5 Amp @ 30 VDC for alarm status (over torque, as an example)
• QR Code: Links to user manual; includes wiring schematic
• Space Heater: Internally wired to limit condensation
• CE Compliant: All actuators are CE labeled and compliant
• 70% Duty Cycle: Extended duty cycle is ideal for high cycling applications
• Simple Wiring: Wiring technique is the same for all voltage units
• Local Controls: Used with OLED and push buttons, a user can locally open or close units via password

• Data sheet – Series 19 MAV Modulating Actuator for Diaphragm Valve (24 VAC/VDC)
• Data sheet – Series 19 MAV Modulating Actuator for Diaphragm Valve (95 VAC to 265 VAC)
• Data sheet – Series 19 MAV Modulating Actuator for Gate Valve (95 VAC to 265 VAC)
• User Manual | Spanish
• Specification – MAV Modulating
