Butterfly Valves

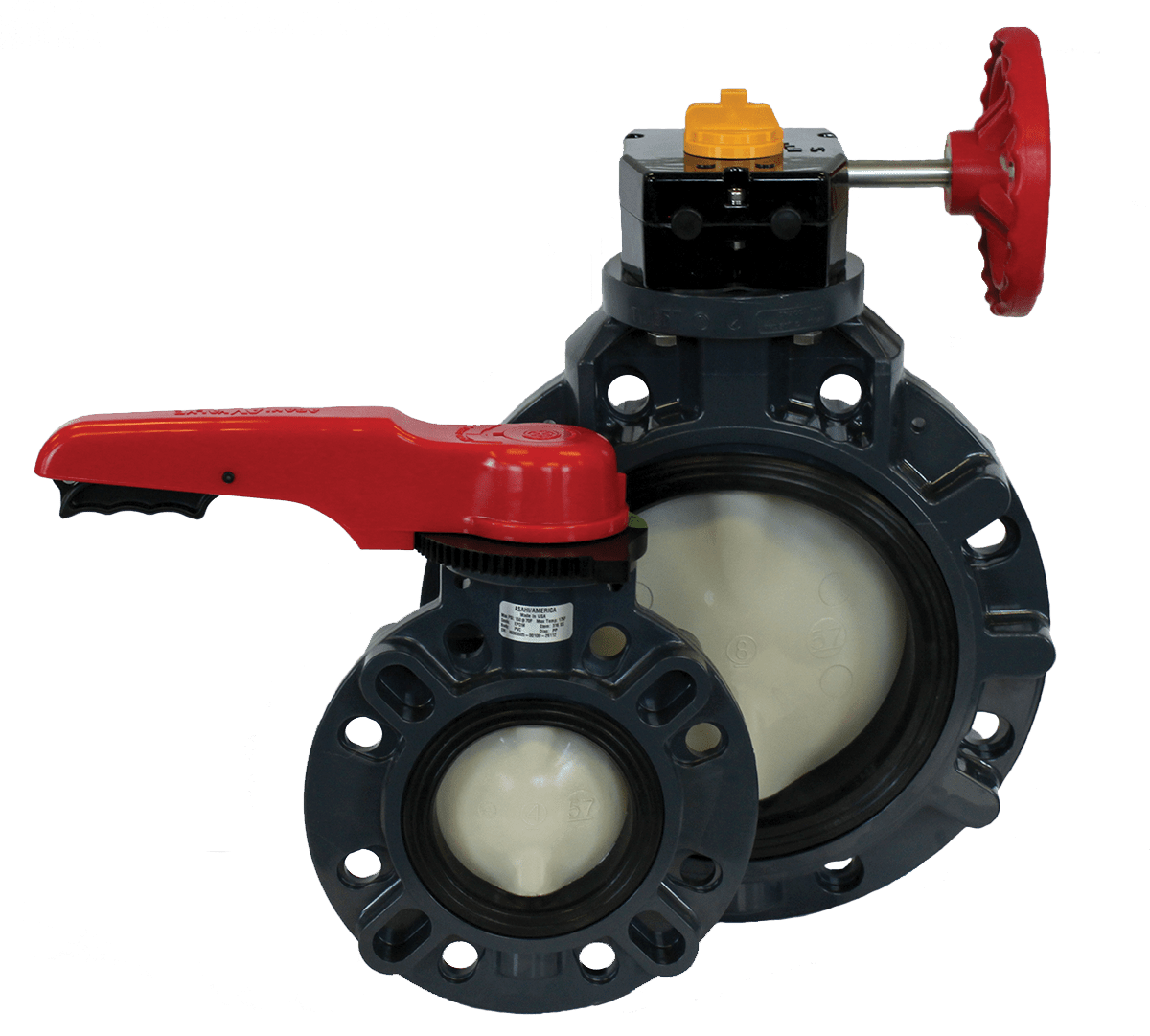

Type-57P Butterfly Valves (1-1/2″ – 14″)
Type-57P butterfly valves are quarter turn valves with equal percentage type flow characteristics. They provide moderate flow control and therefore can be used for both on/off and modulating service. Good tolerance to suspended solids but not recommended for use with slurries or debris. The Type-57P butterfly valve is well suited for a wide variety of fluid flow applications.
Resources:
Data Sheets
Specifications
Ideal Applications Include:
Isolation valves, control valves, chemical processing, water treatment, water features, fountains, aquariums, landfills, swimming pools, power plants, mining, transportation
Certifications:
Specifications:
Sizes:
1-1/2″ – 14″
Body Materials:
PVC, CPVC, PP, PVDF
Seat Materials:
EPDM, FKM, Nitrile
Disc Materials:
PVC, CPVC, PP, PVDF
- 316 stainless steel stem with full disc engagement
- Full seat design eliminates gaskets
- Seat overtightening prevention
- Lockout-Tagout – lever handle molded padlock provision and 2-molded valve body tag holes
- Highly visible O° to 90° position indicator with 19 fine adjustment locking positions
- ISO 5211 F07 – F14 bolt circle on top flange
- Polypropylene stem retainer
- Spherical disc design
- Non-wetted stem and body – Isolated from the media
- Plasgear™ operator
Electric Actuation
- Series 19 On/Off (Electric Actuator)
- Series 19 Failsafe (Electric Actuator)
- Series 19 Modulating (Electric Actuator)
- Series 19 Modulating Failsafe (Electric Actuator)
- Series 10 (Electric Actuator)
- Series 92 (Electric Actuator)
- Series 94 (Electric Actuator)
- Tandem Pneumatic or Electric
Pneumatic Actuation
