Butterfly Valves

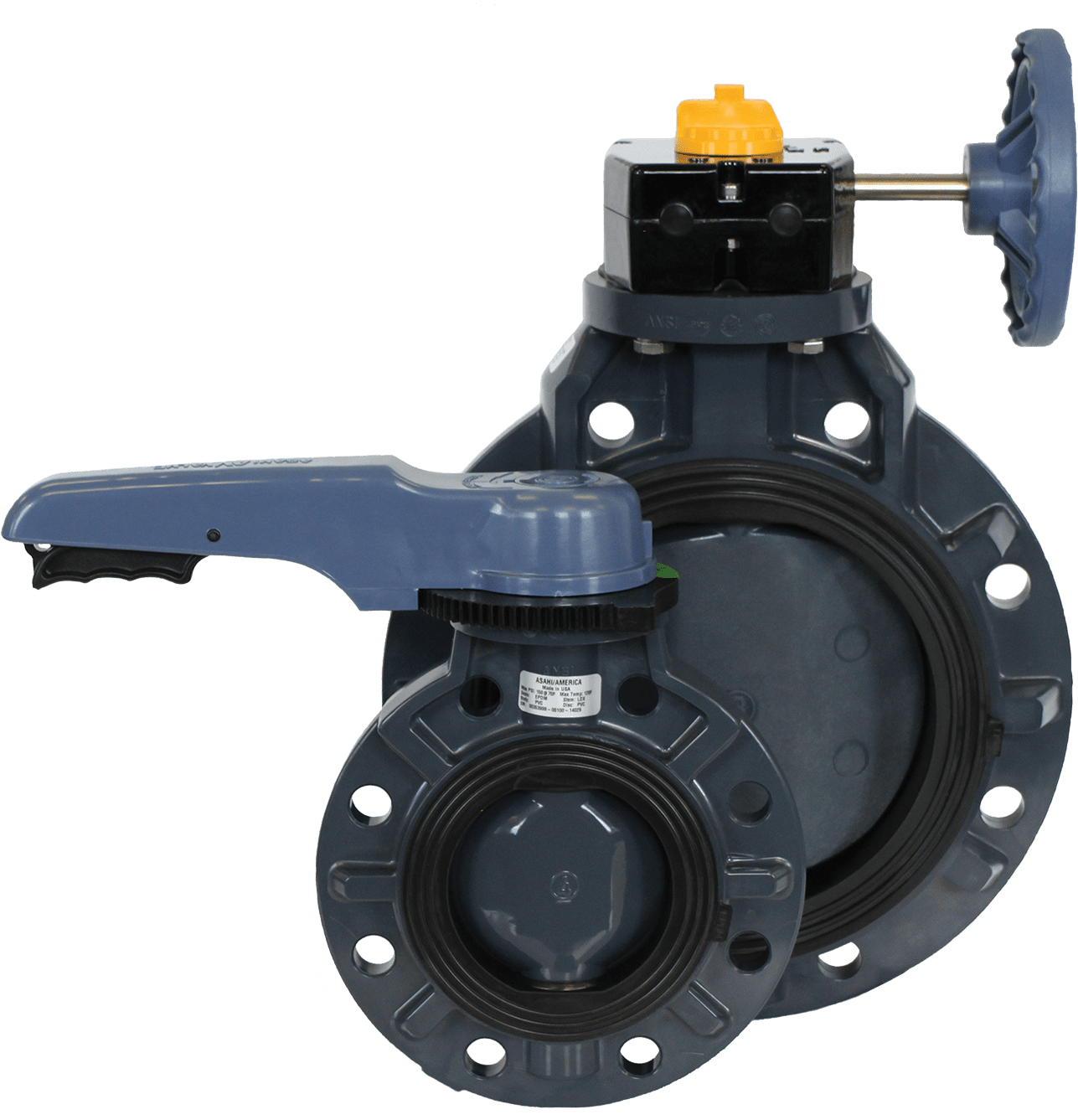

Pool-Pro® Butterfly Valve (1-1/2″- 12″)
The Pool-Pro® butterfly valves are the first valves designed exclusively for the pool service industry. These cost-effective valves can be completely submerged in chlorinated water. The Pool-Pro®’s unique blue handle identifies that this valve is ideally suited for use in chlorinated water applications. The Pool-Pro® valve’s durable PVC-constructed body provides superior corrosion resistance and weighs less than similar valves made of metal.
The Pool-Pro® butterfly valve provides exceptional, reliable performance, and is virtually maintenance-free. Easy to install, the valve’s self-gasketing seat design eliminates the need for mating flange gaskets. The Pool-Pro® comes with an ISO mounting pad, allowing for easy field mounting of accessory options, including stem extensions, gear operators, and electric or pneumatic actuation. Asahi/America’s Pool-Pro® butterfly valve is offered in sizes ranging from 1-1/2″ to 12″.
Resources:
Data Sheet
Specifications
Ideal Applications Include:
Isolation valves, control valves, water features, fountains, fresh water aquariums, swimming pools
Specifications:
Sizes:
1-1/2″ – 12″
Bodies:
PVC
Seats:
EPDM
Seals:
EPDM
Models:
Wafer Style
Operators:
Lever and Gear
Discs:
PVC
Stems:
Stainless Steel
- Submersible: Material of construction allows complete submersion of valve body as all components are compatible with chlorinated water
- PVC/PVC/EPDM construction: Ideal for chlorinated water applications
- Blue handle design: Blue handle designates the proper valve is in place for chlorinated water applications
- Stainless steel stem: Stem does not come in contact with the media, but is still compatible in direct contact
- Thermoplastic material: Lightweight construction allows for easy installation
- ISO mounting pad: Allows for field mounting of accessories including stem extensions, gear operators & automation
- 18 position throttle plate: For lever handle style
