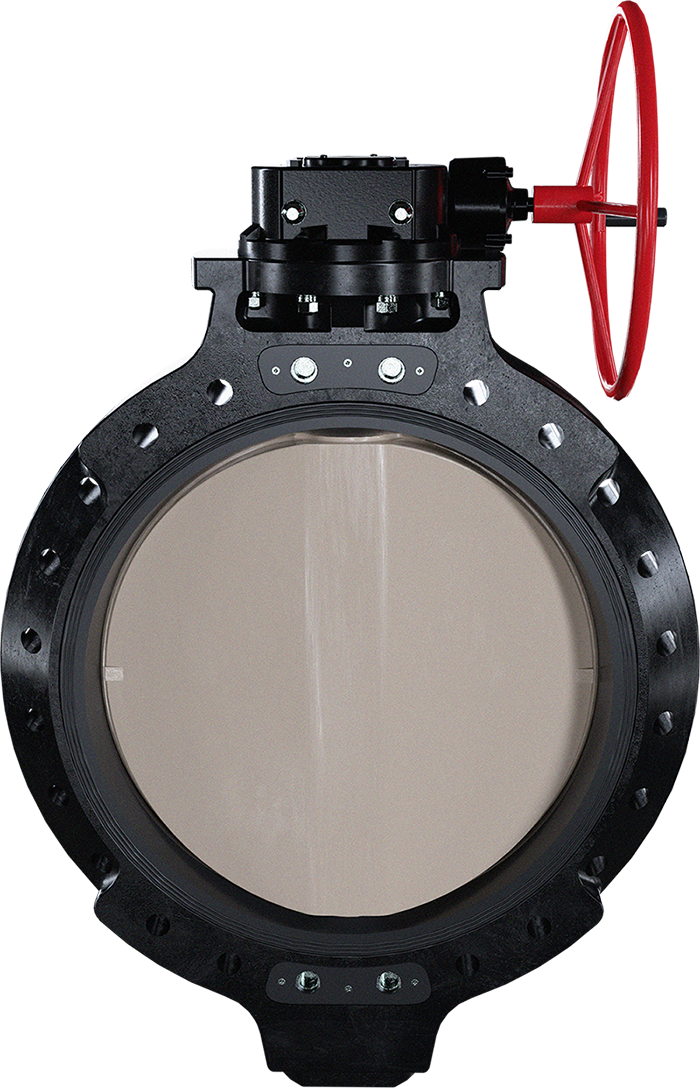

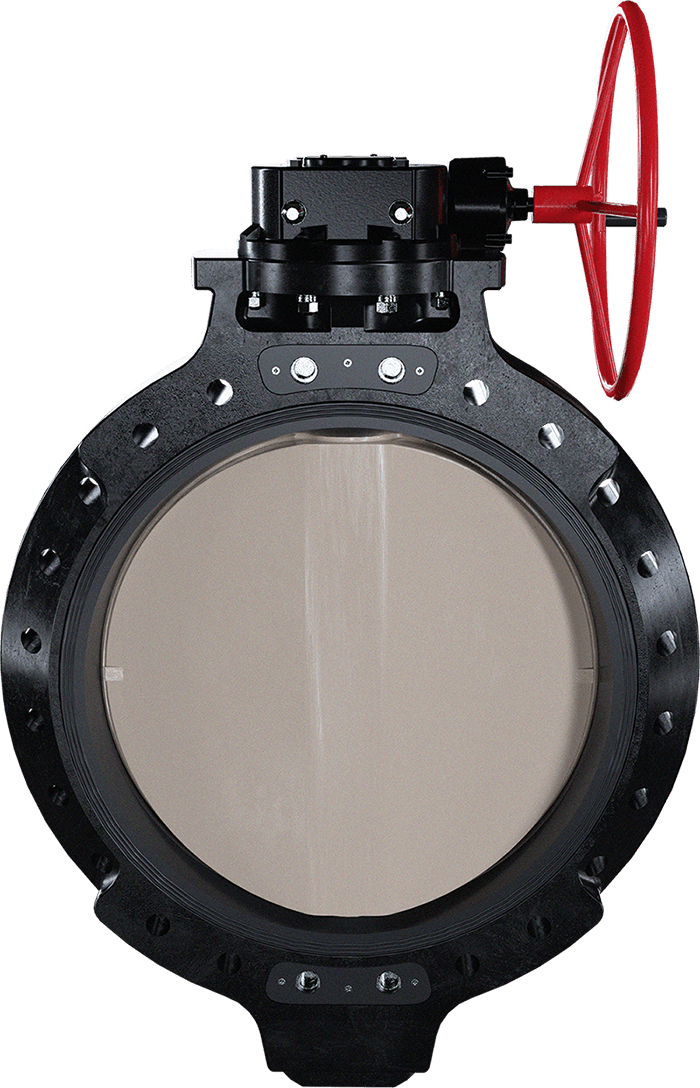

PDCPD Type-58 Large Diameter Wafer Gear Butterfly Valve (28″ – 36″)

The 28” – 36″ Type-58 butterfly valve has been re-engineered using the latest technology and production methods. This ensures a quality product from design through production resulting in high performance and shortened delivery times.

Resources:

Data Sheet

Data sheet – Type-58 Butterfly Valve

Specifications

Specifications – Type-58 Butterfly Valve
Specifications – Butterfly Valves for Landfill Applications

Ideal Applications Include:

Aquariums, Landfills, Mining, Desalination Facilities, Power Plants

Specifications:

Size:

28″ – 36″

Body Materials:

PDCPD

Seat Materials:

EPDM, FKM

Disc Materials:

Polypropylene, PVDF

Features/Benefits

Injection molded PDCPD body with ANSI Class 150 machined bolt pattern
Polypropylene or PVDF disc
EPDM or FKM full boot liner
Face-to-face dimensions meets ISO 5752 short pattern
Non-wetted stainless steel stem
Rotork gear operator
