Butterfly Valve Options
P-Series Limit Switch for Butterfly Valves
Compact type 4X limit switch for remote position indication of manual valves includes 2-spdt mechanical switches, terminal strip, visual beacon, enclosure, factory mount and testing.
Resources:
Data sheet
Ideal Applications Include:
Chemical Processing, Water & Wastewater, Landfills, Irrigation, Food Processing, Mining
Specifications:
Temperature:
-20° C to 80° C
Weight:
1.2 lbs
Shaft, Fasteners, Bracket:
304 stainless steel
Indicator Cover:
Polycarbonate
Limit Switches:
16A mechanical switches
Voltages:
AC: 20 – 250V
DC: 10 – 300V
Housing:
Aluminum
-

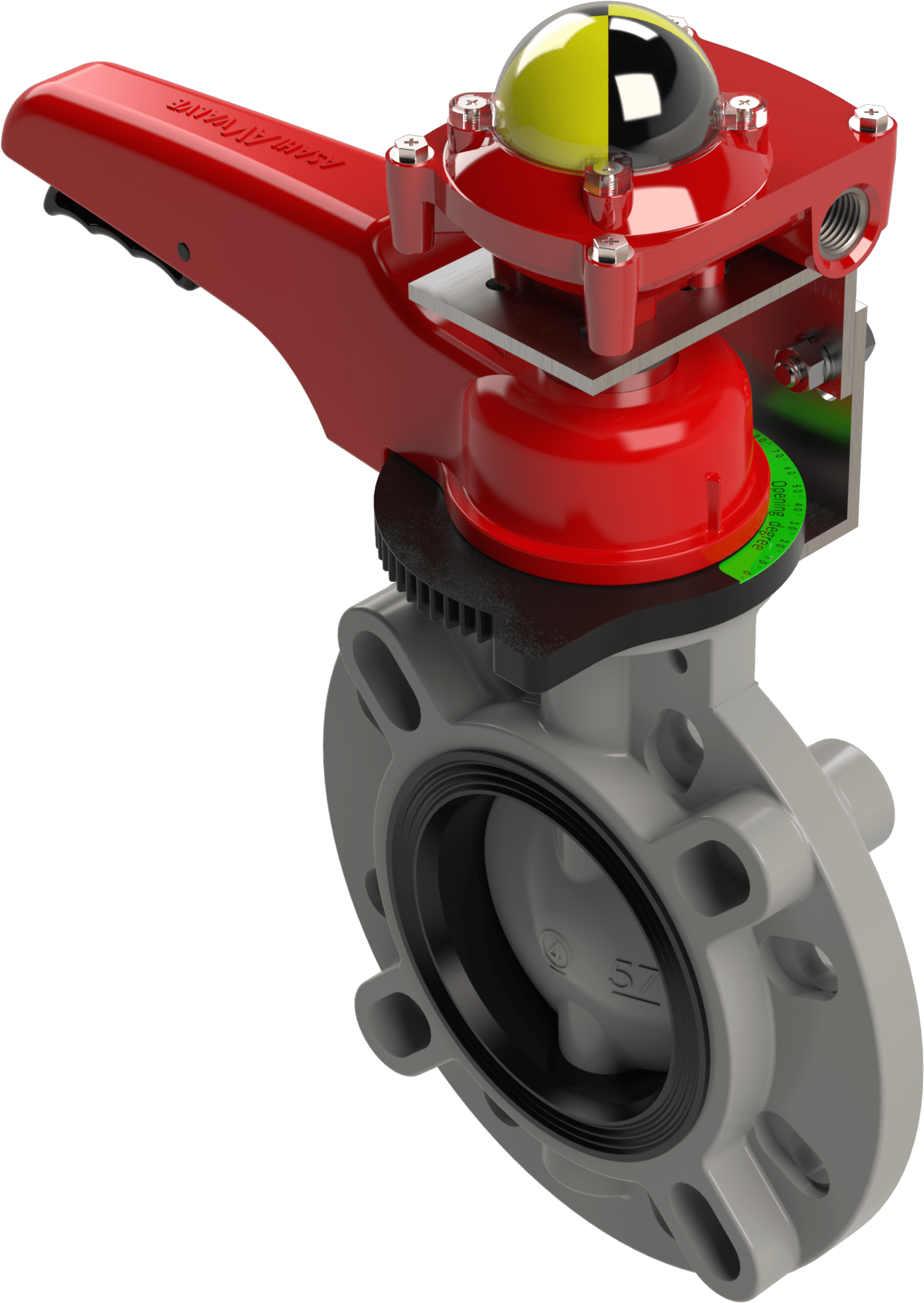

CPVC Lever Operated Butterfly Valve with P-Series Limit Switch
-
PVC Lever Operated Butterfly Valve with P-Series Limit Switch
-
CPVC Gear Operated Butterfly Valve with P-Series Limit Switch
-
PVC Gear Operated Butterfly Valve with P-Series Limit Switch
× ![]()
- Low cost valve position indication solution
- Thermally bonded & baked powder coating finish enclosure
- 2-SPDT mechanical switches rated at 16 amps
- Indication of open/closed status with highly visible globe
- Easily adjustable cams for simple field calibration. No tools required.
- Two 1/2″ NPT conduit entries
- Inductive limit switches
