Ball Valves

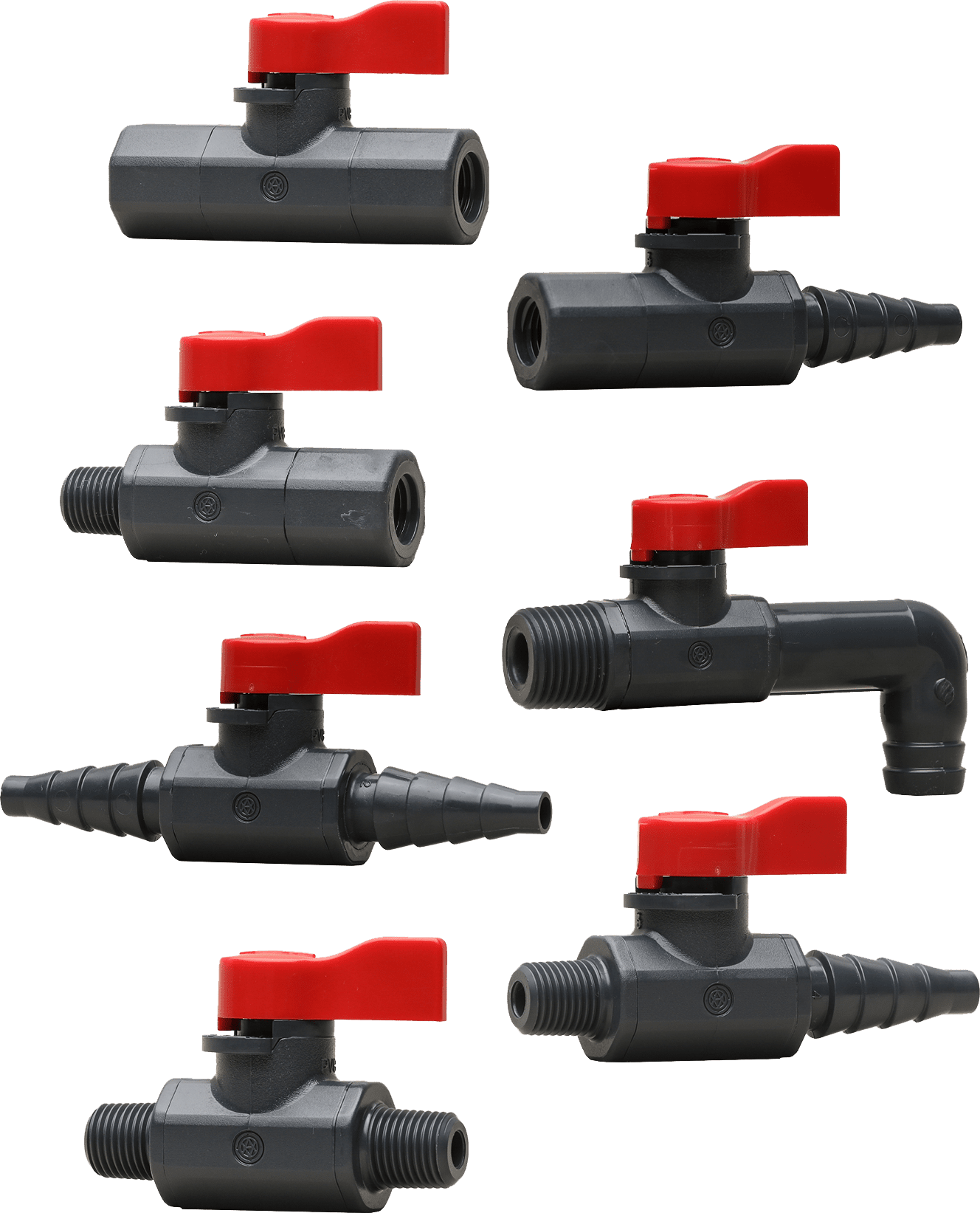

Labcock® Ball Valve (1/4”)
This is a quarter-turn plastic (PVC) manual ball valve. It has many process control monitoring and fluid sampling uses in the laboratory. These are quarter-inch valves, which come in seven configurations. They may be used for simple on/off service or for calibrating flow.
Resources:
Data Sheet
Specifications
Ideal Applications Include:
On/Off, chemical processing, aquariums, mining, water treatment, landfills
Certifications:
Specifications:
Sizes:
1/4″
Models:
Male Thread x Hose (ID 3/8″)
Male Thread x Female Thread
Hose x Hose / Male Thread x Male Thread
Female Thread x Female Thread
Male Thread x Elbow (OD .63″)
Female Thread x Hose
*Size 1/4″ PVC/EPDM Models NSF-61 Certified
Bodies:
PVC
Seats:
EPDM
Seals:
EPDM
- Pressure rated at 150psi at 70º F (water)
- Precise fingertip control
- Calibrated flow indicator
- Rugged unibody construction, sturdy stem
- Full vacuum-rated, 29.9″ Hg
- 90º turn operation with lever handle
- Cv = 1.6
