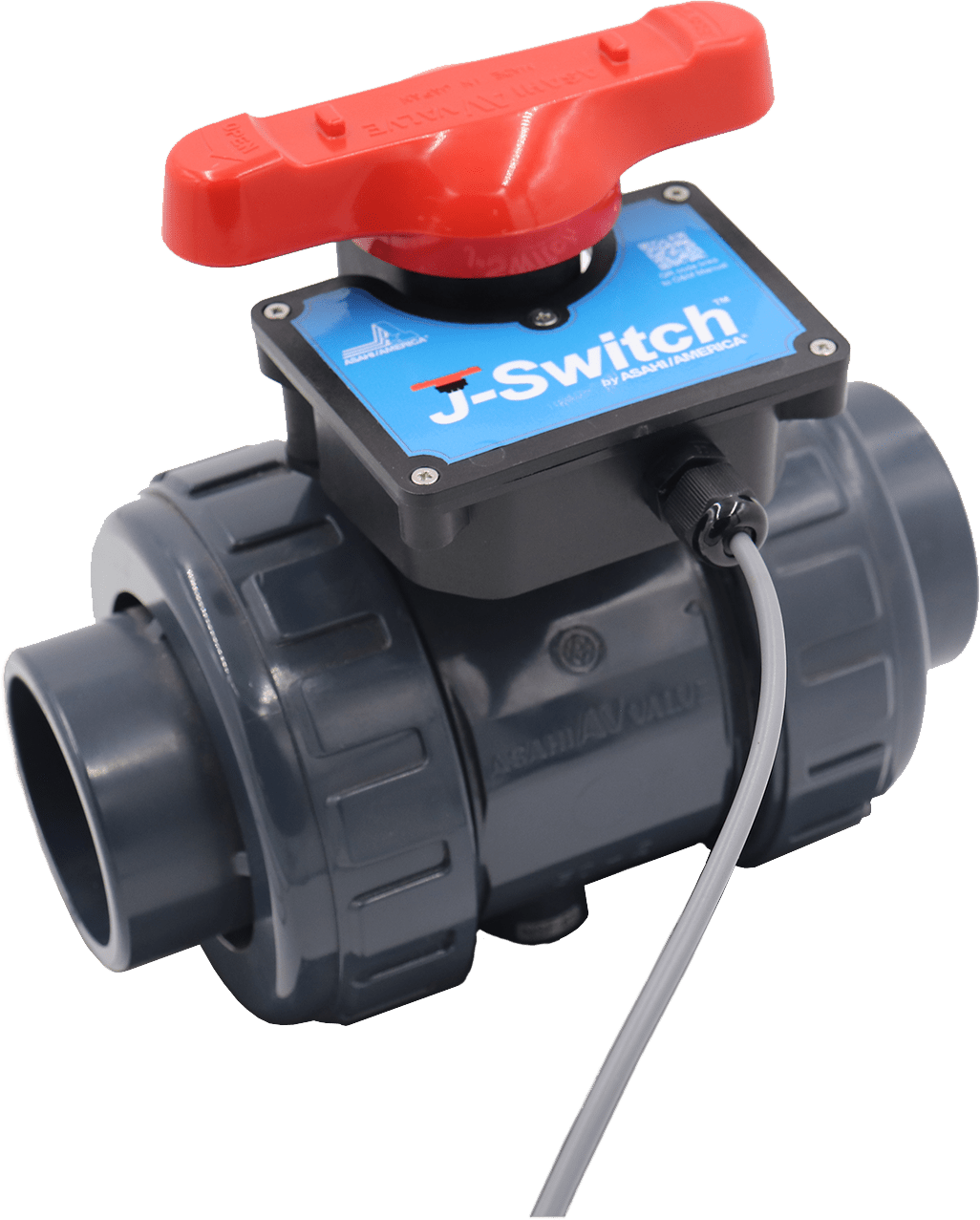

J-Switch® Limit Switch
J-Series manual ball valve limit switches (J-Switch®) are compatible with Asahi/America’s Type-21/21a ball valves and Type-23 Multiport™ ball valves. Compact IP67 limit switch for remote position indication of manual valves includes 2-spst mechanical switches, terminal strip, visual beacon, enclosure, factory mount and testing.
J-Series Manual Limit Switch Resources:
Data Sheet
Operations Manual
Ideal Applications Include:
On/Off, chemical processing, aquariums, mining, water treatment, landfills
Specifications:
Temperature Limit:
150o F
Enclosure:
Glass-filled polypropylene
Fasteners:
304 stainless steel
Electrical Connection:
Cable gland w/ 2M flying leads
Limit Switches:
2 SPST, Proximity
Voltages:
0.5A @ 180 VAC/VDC Max
Protection:
NEMA 4X
- Low profile
- Direct mount
- Glass-filled polypropylene NEMA 4X enclosure with stainless steel trim
- No switch adjustment needed
- Temperature limit of 150o F
- No tools required for installation
