Dymatrix® PFA/PTFE Valves
Dymatrix® AVNVM Needle Valves

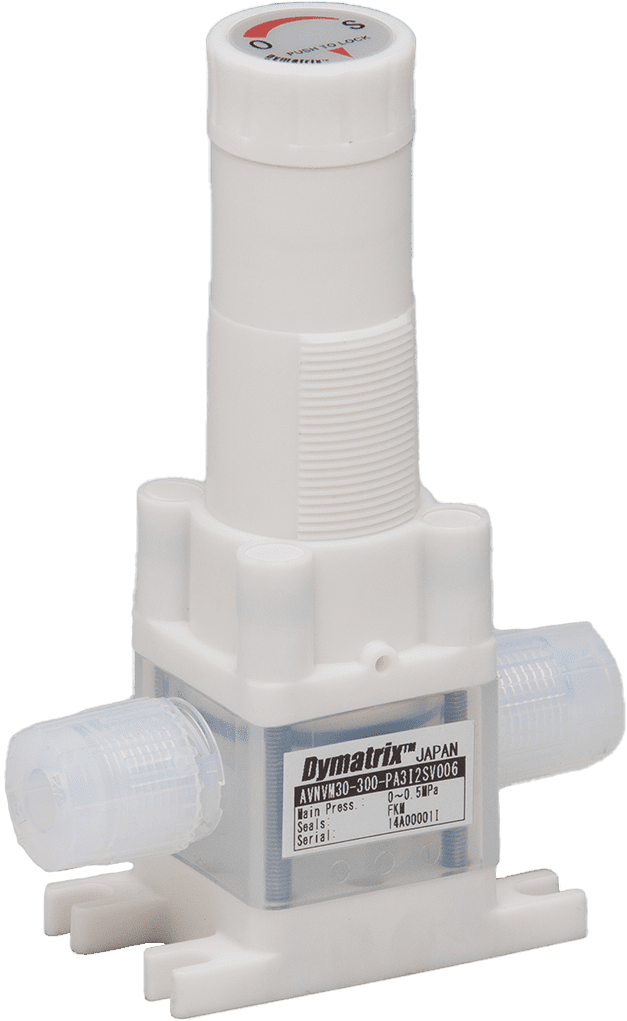

The AVNVM needle valve provides ultra-precise flow control for critical high purity and aggressive chemical applications in the Semiconductor and Life science industries. The design features a parabolic shape that provides a linear flow rate across the full range of operation.
The needle and diaphragm are integrated into a single PTFE component preventing media from leaking into the valve bonnet. The novel needle/diaphragm also includes a small sealing cone around the base of the needle, insuring an excellent seal and protecting the needle from damage.
The AVNVM needle valve utilizes a unique duel-stem actuator. Both stems are threaded with a different pitch that functions similar to a reduction gear. The unique actuation allows a relatively large rotation of the handle to translate into micro movements of the needle allowing for very fine tuning of the flow rate.
Specifications:
Materials of construction:
Wetted (PFA or PTFE), Actuator (PVDF)
Flow Rate:
0 – 10 l/min
Orifice Sizes:
2 – 7mm
Flow Configuration:
Straight
Actuation:
Manual (multi-turn push-to-lock)
Connection Types:
Flare, S300, Super Pillar, Tube, Rc, Flowell 20 and 60 series
- Duel stem design offers precise flow rate adjustment
- Monolithic PTFE diaphragm/needle eliminates potential leak path and reduces particle generation.
- Sealing cone prevents damage to needle, while insuring excellent sealing performance.
- True Linear Flow Characteristics
- Ultra-high purity, corrosion resistant PTFE and PFA wetted components
- Configurable mounting orientation
- O-Rings: FKM, EPDM, Viflon F, Kalrez®
- Fluoropolymer coated stainless steel hardware
