Pneumatic Actuators
Series 79 Stainless Steel

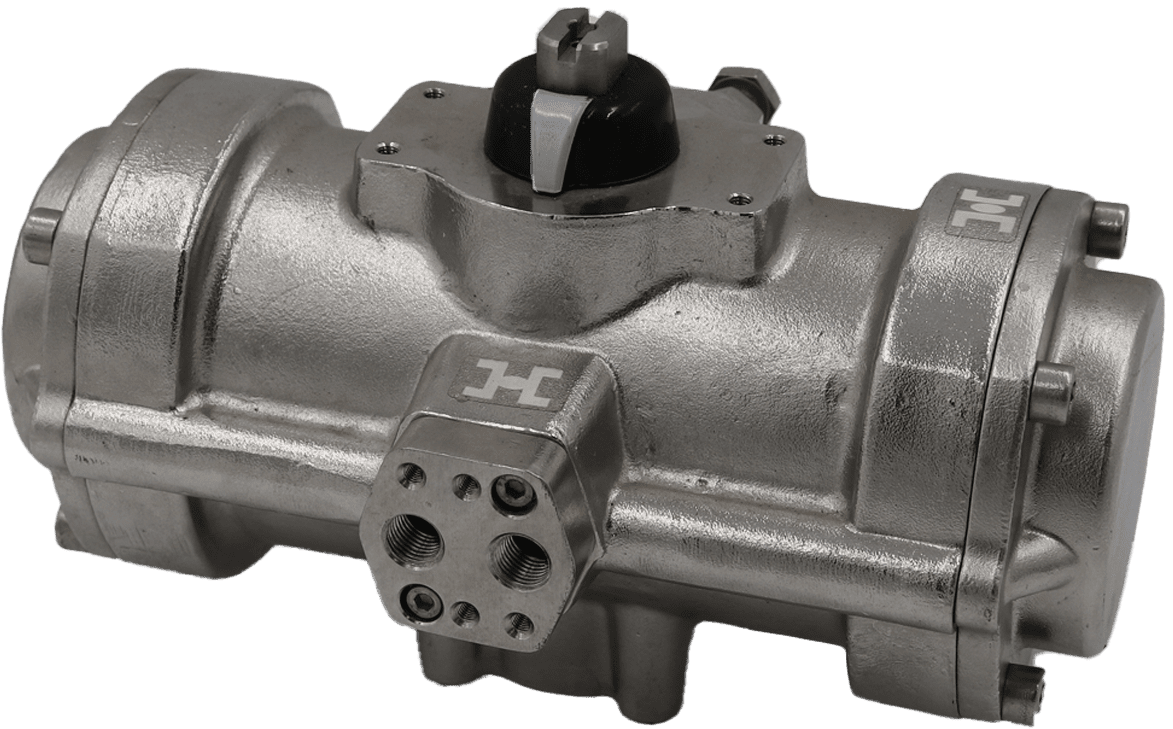

Series 79P stainless steel pneumatic actuators have a 316 stainless steel housing for chemical resistance and high strength. The actuator functions using a double piston rack and pinion arrangement for a smooth torque profile throughout the actuator stroke. Air-to-spring models feature pre-loaded springs that safely avoid potential hazards during maintenance. The base of the actuator has an ISO output drive and bolt circle for easy mounting to quarter turn valves. The top of the actuator has a visual position indicator and a NAMUR mounting pad to accommodate mounting accessories. The air ports are 1/4″ NPT and have a NAMUR bolt pattern to accommodate flush mount solenoids.
Resources:
Datasheet – Series 79 Pneumatic Actuator
Ideal Applications Include:
Chemical Processing, Bleach Plants, Aquariums, Mining, Water Treatment, Landfills, Swimming Pools, Power Plants
Specifications:
Torque:
100 to 3795 in-lbs
Materials:
316 stainless steel housing and stainless steel hardware
Models:
Air-to-air
Air-to-spring (fail closed)
Air-to-spring (fail open)
- Actuator body and end caps constructed of 316 stainless steel
- Double piston, rack and pinion operation
- Female ISO output drive
- 80psi to 120psi recommended operating pressures
- Fail positions can be specified for air-to-spring actuators
- Visual position indicator
- -25° F to 195° F operating temperature range
- 1/4″ NPT air connections
- Safety springs for safe maintenance
- ISO output drive and bolt pattern for easy mounting
- NAMUR accessory mounting
- Output shaft is 316 stainless steel
