Series 19 SAV On/Off Electric Actuators
Click to enlarge

Series 19 On/Off

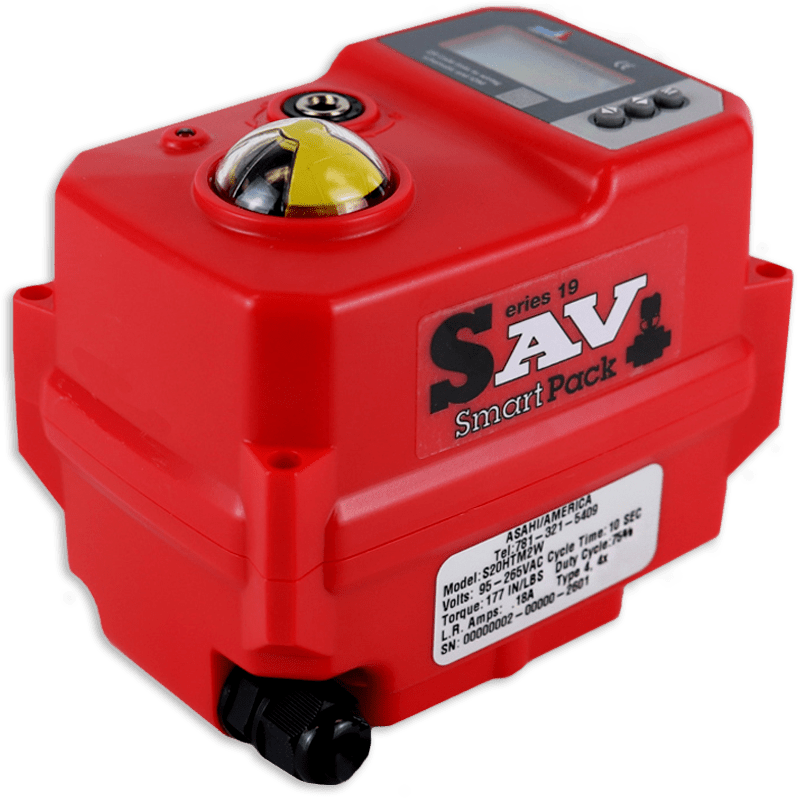

Series 19 SAV On/Off Electric Actuators

An on/off Series 19 electric actuator provides maintenance- and trouble-free operation in an on/off application.

Resources:

Data Sheets

Ideal Applications Include:

Remote locations, locations with no air supply, colder temperatures, smaller valves, low cost applications

Specifications:

Sizes:

S20, S50, S110, S400

Amp Draw:

0.34 Amp for S20, 0.39 Amp for S50, 1.24 Amp for S110, 1.83 Amp for S400

Cycle Time:

Per 90 degrees: 10 seconds

Torque:

177 in-lbs to 3540 in-lbs

Electrical Connection:

NEMA 4X cable gland with two-meter color-coded cable

Enclosure:

NEMA 4X

Voltage:

95 VAC to 265 VAC 1Ph 50/60 Hz
24 AC/DC

Max Temp:

150° F

Valve/Actuator Packages

  • Type-21/21a Ball Valves

  • Type-23 Multiport™ Ball Valves

  • Type-57 Series of Butterfly Valves

  • Compact: Perfect for OEM and skid manufacturers
  • OLED Screen: Displays valve position, alarms (such as an over torque condition)
  • Push Buttons: Used to calibrate/adjust end positions and operate local controls
  • Multi-voltage: 95 VAC to 265 VAC or 24 VAC/VDC
  • Position Indication: Highly visible beacon position indicator
  • LED Position Indication: RED closed, GREEN open, BLUE fault
  • Manual Override: Manually cycle valve via electroless nickle-plated hex key
  • Auxiliary contacts: Open and closed dry contacts rated 0.1 Amp @ 250 VAC, 0.5 Amp @ 30 VDC
  • Space Heater: Internally wired to limit condensation
  • QR Code: Links to user manual; includes wiring schematic
  • RoHS Compliant
