Series 19 MAV On/Off Electric Actuators
Click to enlarge

Series 19 On/Off

Series 19 MAV On/Off Electric Actuators

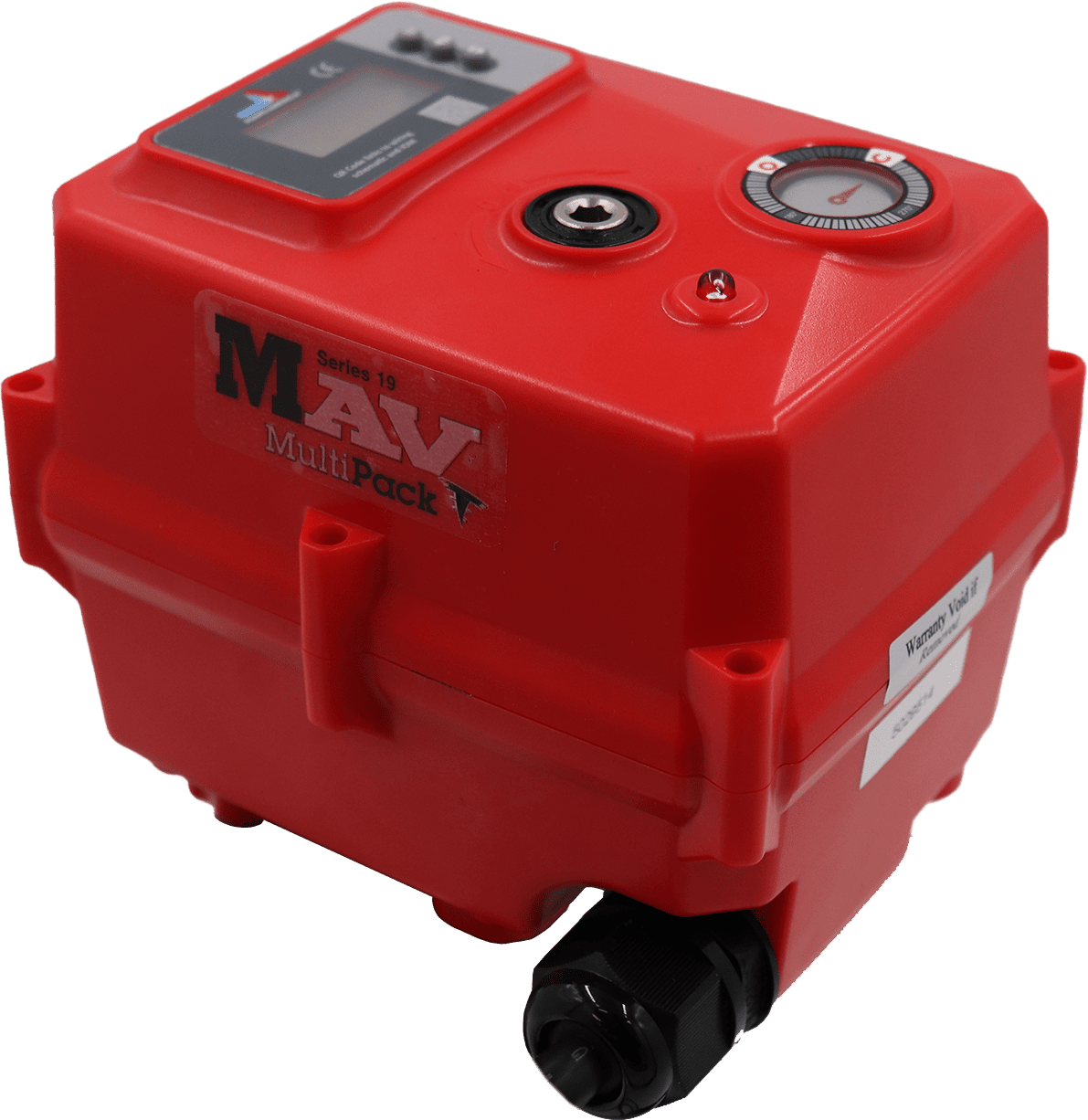

An on/off Series 19 electric actuator provides maintenance- and trouble-free operation in an on/off application.

Resources:

Data Sheets

Ideal Applications Include:

Remote locations, locations with no air supply, colder temperatures, smaller valves, low cost applications

Specifications:

Sizes:

S20, S50

Amp Draw:

0.96 Amp for S20, 1.2 Amp for S50 (24 VAC/VDC)

0.24 Amp for S50 (95 VAC to 265 VAC)

Cycle Time:

Per cycle: 13 to 100 seconds

Torque:

177 in-lbs to 442 in-lbs

Electrical Connection:

NEMA 4X cable gland with two-meter cable

Enclosure:

NEMA 4X PC/PET enclosure with stainless steel trim

Voltage:

95 VAC to 265 VAC

24 VAC/VDC

Max Temp:

150° F

Valve/Actuator Packages

  • Type-14 Diaphragm Valves

  • Gate Valves

  • Compact: Perfect for OEM and skid manufacturers
  • OLED Screen: Displays valve position, alarms (such as an over torque condition)
  • Push Buttons: Used to calibrate/adjust end positions, local controls
  • Multi-voltage: 95 VAC to 265 VAC or 24 VAC/VDC
  • Motor: Reversing, brushless DC motor
  • Gear Train: Permanently lubricated steel gears
  • Corrosion Resistant Enclosure: NEMA 4X PC/PET enclosure with stainless steel trim
  • ISO mounting configuration
  • Electrical Connection: NEMA 4X cable gland with two-meter cable
  • Visual Position Indication: Flat disc position indicator
  • LED Position Indication: RED closed, GREEN open, BLUE fault
  • Manual Override: Manually cycle valve via electroless nickel-plated hex key
  • Auxiliary Contacts: Open and closed dry contacts rated 0.1 Amp @ 250 VAC, 0.5 Amp @ 30 VDC
  • Alarm Contacts: Dry contacts rated 0.1 Amp @ 250 VAC, 0.5 Amp @ 30 VDC for alarm status (over torque, as an example)
  • QR Code: Links to user manual; includes wiring schematic
  • Space Heater: Internally wired to limit condensation
  • CE Compliant: All actuators are CE labeled and compliant
  • 70% Duty Cycle: Extended duty cycle is ideal for high cycling applications
  • Simple Wiring: Wiring technique is the same for all voltage units
  • Local Controls: Used with OLED and push buttons, a user can locally open or close units via password
