Series 19 On/Off

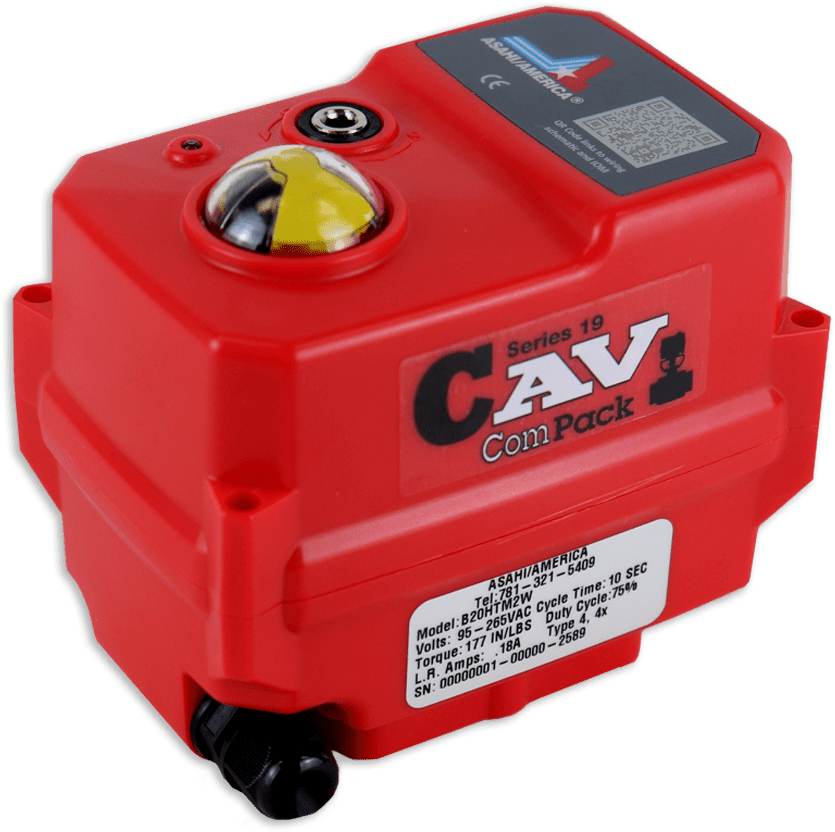

Series 19 CAV Compact On/Off Electric Actuator
The basic Series 19 CAV Com Pack® is a mechanical-type actuator available as an on/off unit. The CAV Com Pack® mounts on Asahi/America’s Type-27 Omni® ball valves, Type-21 ball valves, and Type-23 Multiport™ ball valves to provide smooth operation in a compact and lightweight package. The Com Pack® Series 19 fits Omni® ball valve sizes 3/8” to 2”, Type-21 and Type-23 ball valve sizes 1/2″ – 2″ and has a cycle time of 10 seconds per 90 degrees.
Resources:
Data Sheets
- Data Sheet – Series 19 CAV On/Off on Type-27 Ball Valve
- Data Sheet – Series 19 CAV On/Off on Type-21 and Type-23 Ball Valves
Ideal Applications Include:
Remote locations, locations with no air supply, colder temperatures, smaller valves, low cost applications
Specifications:
Sizes:
C20 for 3/8″ – 2″ Omni® Type-27 ball valves
C20 for 1/2″ – 2″ Type-21 ball valves and Type-23 Multiport™ ball valves
Amp Draw:
0.18 Amp
Cycle Time:
Per 90 degrees: 10 seconds
Torque:
177 in-lbs
Electrical Connection:
NEMA 4X cable gland with two-meter color-coded cable
Enclosure:
NEMA 4X
Voltage:
95 VAC to 265 VAC 1Ph 50/60 Hz
24 AC/DC
Max Temp:
150° F
Valve/Actuator Packages
-
Omni® Type-27 Ball Valves
-
Type-23 Multiport™ Ball Valves
-
Type-21/21a Ball Valves
- Compact: Compact and lightweight actuated valve package that is ideal for OEMs
- Motor: Reversing, brushless DC motor
- Multi-voltage: 95 VAC to 265 VAC or 24 VAC/VDC
- Gear Train: Permanently lubricated solid gears
- Corrosion Resistant Enclosure: NEMA 4X enclosure with stainless steel trim
- Position Indication: Highly visible dome position indicator
- LED Position Indication: RED closed, GREEN open
- Manual Override: Manually cycle valve via electroless nickel-plated hex key
- Auxiliary Contacts: Open and closed dry contacts rated 0.1 Amp @ 250 VAC, 0.5 Amp @ 30 VDC
- Space Heater: A two-watt heater is internally wired to limit condensation
- QR Code: Links to user manual; includes wiring schematic
- RoHS Compliant
