Series 19 Local Remote Station

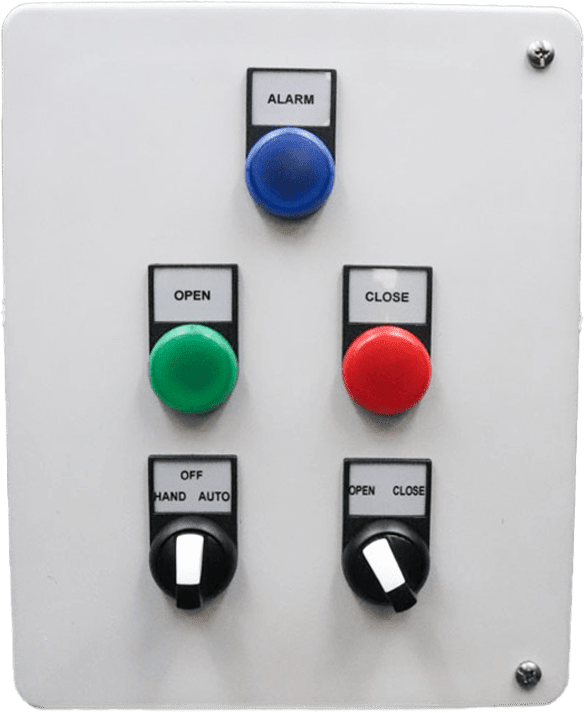

A local/remote station serves as an interface for controlling valves, offering seamless transition between computer-based and manual operation modes. Designed within a compact NEMA Type 4X fiberglass polyester enclosure with stainless steel trim, it ensures protection and durability. Equipped with essential features including selector switches for open/close control and hand-off-auto operation, it grants users flexibility to override computer control when necessary. Indicator lights signal valve status, and three dry contact relays facilitate open confirmation, closed confirmation, and alarm signaling. With these features, the station provides efficient valve control solutions for industrial applications.
Ideal Applications Include:
Maintenance, manual control, protection against computer signal loss
- For use with Series 19 Electric Actuators
- NEMA Type 4X enclosure constructed of fiberglass polyester
- Stainless steel trim
- For use with with Series 19 Electric Actuators
- NEMA Type 4X enclosure constructed of fiberglass polyester
- Stainless steel trim
- Captive cover gasket
- Captive cover screws
- Two position selector switch (open/close)
- Three position selector switch (hand/off/auto)
- Terminal block for the landing of the Series 19 electric actuator flying leads
- Three indication lights (green – open; red – closed; blue – alarm)
- Three dry relays – SPDT, 10A (open confirmation [CR1], closed confirmation [CR2], alarm [CR3])
- Series 19 CAV
- Series 19 SAV
- Series 19 MAV
- Contact factory for specific applications
