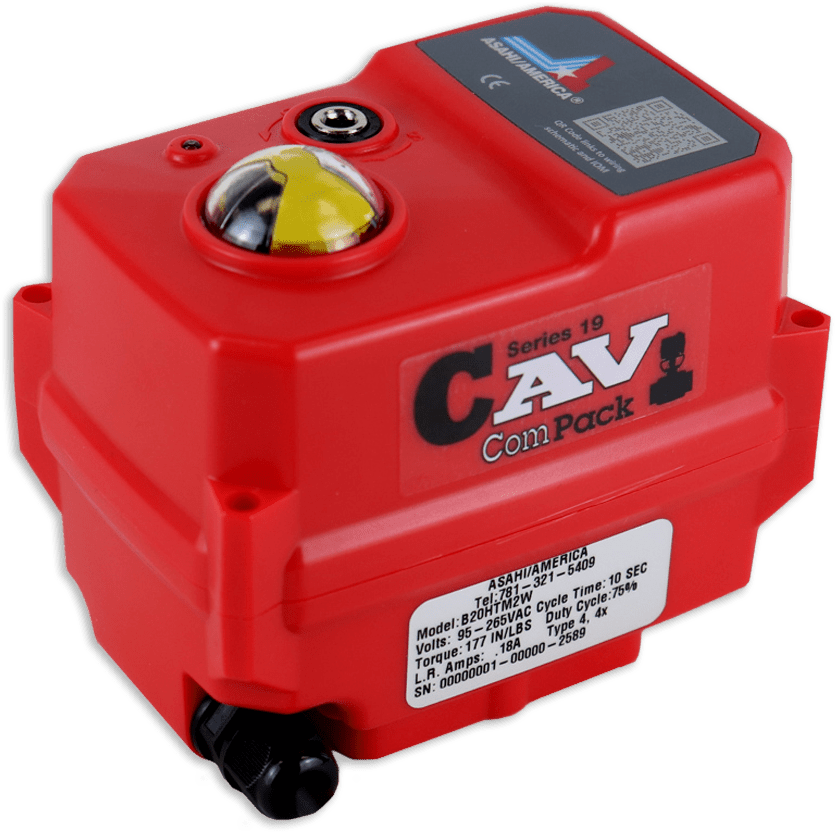

Series 19 CAV Compact Failsafe Electric Actuator
Click to enlarge

Series 19 Failsafe

Series 19 CAV Compact Failsafe Electric Actuator

The basic Series 19 CAV Com Pack® is a mechanical-type actuator available as an on/off unit. The CAV Com Pack® mounts on Asahi/America’s Type-27 Omni® ball valves, Type-21 ball valves and Type-23 Multiport™ ball valves to provide smooth operation in a compact and lightweight package. The Com Pack® Series 19 fits Omni ball valve sizes 3/8” – 2”, Type-21 and Type-23 ball valves sizes 1/2″ – 2″ and has a cycle time of 10 seconds per 90 degrees.

Resources:

Data Sheets

Specifications:

Size:

C20 for 3/8″ – 2″ Omni® Type-27 Ball Valves

Amp Draw:

0.18 Amp

Cycle Time:

Per 90 degrees: 10 seconds

Torque:

177 in-lbs

Electrical Connection:

NEMA 4X cable gland with two-meter color coded cable

Enclosure:

NEMA 4X

Voltage:

95 VAC to 265 VAC 1Ph 50/60 Hz

24 AC/DC

Max Temp:

150° F

Valve/Actuator Packages

  • Type-21/21a Ball Valves

  • Type-27 Omni® Ball Valves

  • Type-23 Multiport™ Ball Valves

  • Compact: Perfect for OEM and skid manufacturers with a footprint of 2.75” x 4” up to a 2” ball valve
  • Multi-voltage: 95 VAC to 265 VAC or 24 VAC/VDC
  • Motor: Reversing, brushless DC motor
  • Capacitor Discharge System: A capacitor is used in place of batteries for failsafe mode
  • Fail Position: Fail close is standard; fail as is, or fail open are options
  • Gear Train: Permanently lubricated steel gears
  • Corrosion Resistant Enclosure: NEMA 4X enclosure with stainless steel trim
  • ISO mounting configuration
  • Electrical Connection: NEMA 4X cable gland with two-meter cable
  • Position Indication: Highly visible beacon position indicator
  • LED Position Indication: RED closed, GREEN open
  • Manual Override: Manually cycle valve via electroless nickel-plated hex key
  • Auxiliary Contacts: Open and closed dry contacts rated 0.1 Amp @ 250 VAC, 0.5 Amp @ 30 VDC
  • Space Heater: Internally wired to limit condensation
  • CE Compliant: All actuators are CE labeled and compliant
  • 75% Duty Cycle: Extended duty cycle is ideal for high cycling applications
  • QR Code: Links to user manual; includes wiring schematic
  • Simple Wiring: Wiring technique is the same for all voltage units
  • RoHS Compliant
