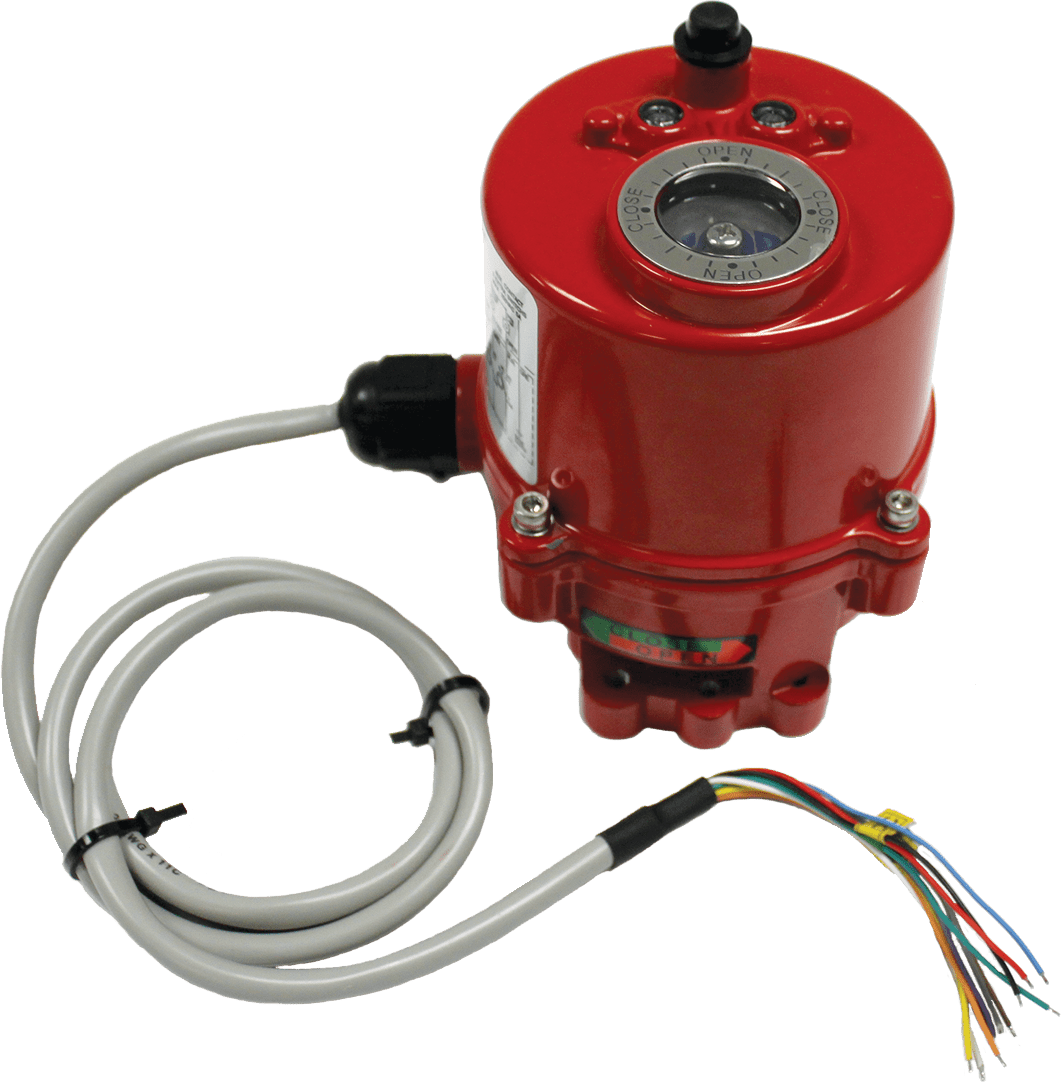

Series 17 Compact Electric Actuator
Click to enlarge

Electric Actuators

Series 17 Compact Electric Actuator

The Series 17 electric actuator features a reversing motor with multi-voltage capabilities; 85 VAC-265 VAC (50/60Hz), 24 VDC. An internal heater, auxiliary switches, and two position indicating LED’s are standard equipment. Additional features include a permanently lubricated steel gear train, NEMA Type 4 & 6 enclosure with a thermally bonded powder coat finish, declutchable manual override, visual mechanical position indication, ISO bolt circle, and flying leads. The Series 17 can be mounted to Asahi/America’s Type-21 ball valve and Type-57P butterfly valves.

Resources:

Data Sheets

Specifications:

AMP Draw:

0.45

Limit Switches:

2-SPDT end of travel switches
2-SPDT dry contact switches

Torque:

350 in-lbs

Wiring:

1.2M flying leads

Heater:

.5W

Voltage:

85-265 VAC single phase, 24 VDC

Max Ambient Temperature:

150° F

Cycle Time per 90 degree:

12 seconds

  • Size: Compact, lightweight
  • Motor: Low current, reversing DC motor
  • Multi-voltage: 85-265 VAC single-phase, 24 VDC
  • Overload Protection: Electric motor cuts out at 2 Amps
  • Gear Train: Permanently lubricated solid gearing
  • Corrosion Resistant Enclosure: Thermally bonded powder coat finish
  • Position Indication: Mechanical dial indication
  • LEDs: Open and close LED position indication (red/closed, blue/open)
  • Declutchable Manual Override: Push down override button and use provided lever to manually position in the event of no power
  • Auxiliary Limit Switches: Dry contact switches for open and close positions
  • Enclosure: Combination NEMA Type 4X and 6 enclosure with captive cover screws
  • Electrical Connections: Sealed cable gland with 1.2M flying leads
  • Space Heater: Standard equipment
  • ISO Mounting: F03, F04, F05 X 14mm star
