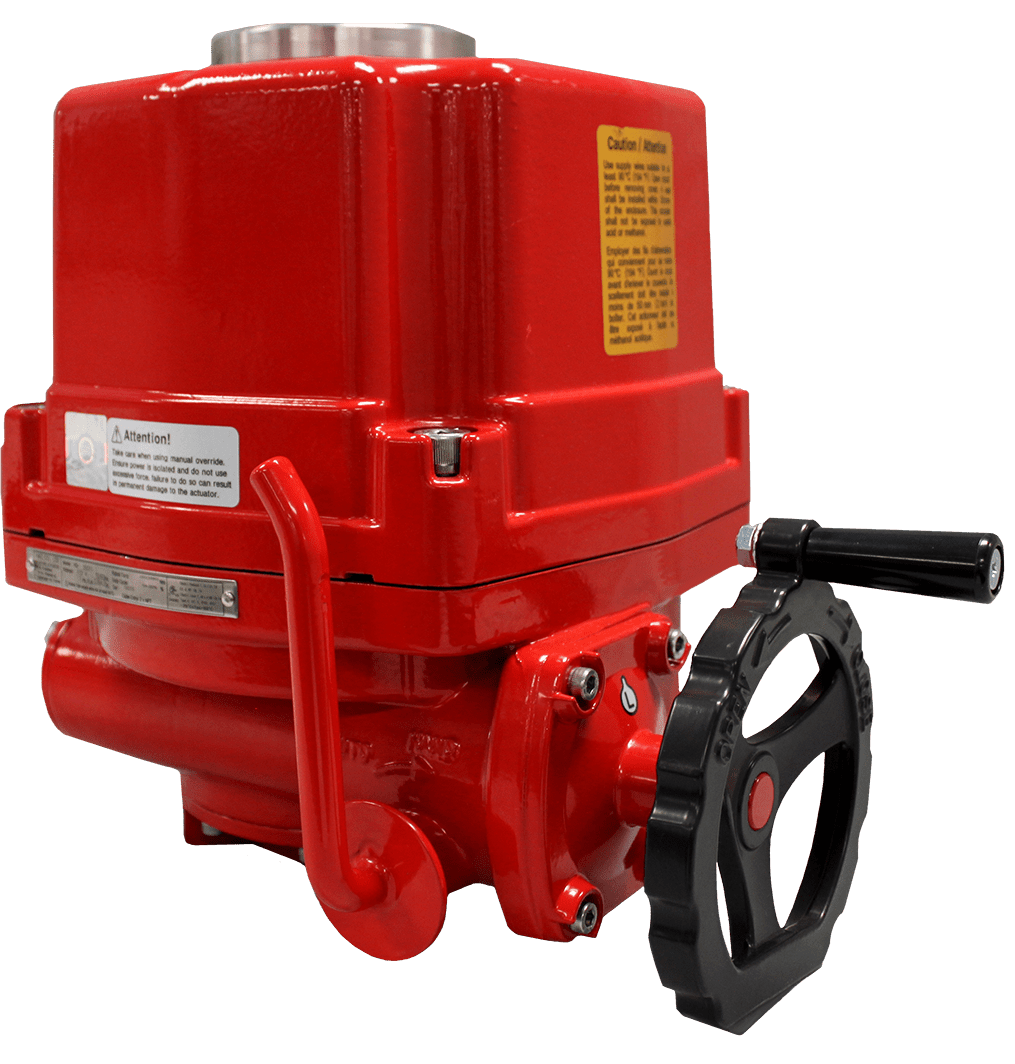

Electric Actuators
Series 10
The Series 10 electric actuator is used to actuate Asahi’s larger valves, including butterfly valves up to 24″.
Resources:
Data Sheet
Ideal Applications Include:
Locations with no air supply, colder temperatures, larger valves, limited submergence applications
Specifications:
Torque:
1,320 – 26,040 in-lbs
Conduit Entry:
Two (2) 3/4″ FNPT
Limit Switches:
Four (4) single pole, double throw (4-SPDT) 10 Amp rated
Torque Switches:
Two (2) single pole, double throw (4-SPDT) 10 Amp rated
Voltage:
120 VAC 1Ph 50/60 Hz (others available)
Amp Draw:
1.65 – 4.10
Max Ambient Temperature:
150º F
Cycle Time per 90º:
21– 31 seconds
- Motor: Reversing, squirrel cage induction motor, 120 VAC 50/60 Hz, single phase
- Overload protection: Integral thermal overload protection for motor windings with automatic reset
- Gear train: Permanently lubricated
- Conduit: Two 3/4″ FNPT conduit entries to eliminate cross feed between control and power signals
- Declutchable manual override: Lockable declutching lever with handwheel
- Limit switches: Standard end of travel limit switches can be used for light indication (not to be use with PLC for position confirmation)
- Auxiliary (Additional) limit switches: Each electric actuator is provided as a standard with 2-SPDT auxiliary limit switches
- Torque Switches: 2-SPDT Torque switches
- Mechanical Stops: Two +/- 10% mechanical travel stops
- Enclosure: Type 4X & 6
- AWWA C542: Conforms to AWWA C542
- Self-Locking: Self-locking worm gear design eliminates the need for a mechanical brake
- Space Heater: A space heater is provided as standard equipment
- Output torque: Series 10 Electric Actuators have an output torque range from 1,320 in-lbs to 10,440 in-lbs
- Corrosion resistant mounting: Mounting is with stainless steel bracket, stainless steel coupling, and stainless steel hardware
- Voltages: 230/1, 380/3, 460/3, 24VDC
- Positioner
- Transmitter
- Two-wire control
- NEMA 7 Enclosure
- ATEX Enclosure
- Local Remote Station
