Butt Welding
Acrobat™ 315
Available for purchase or rental

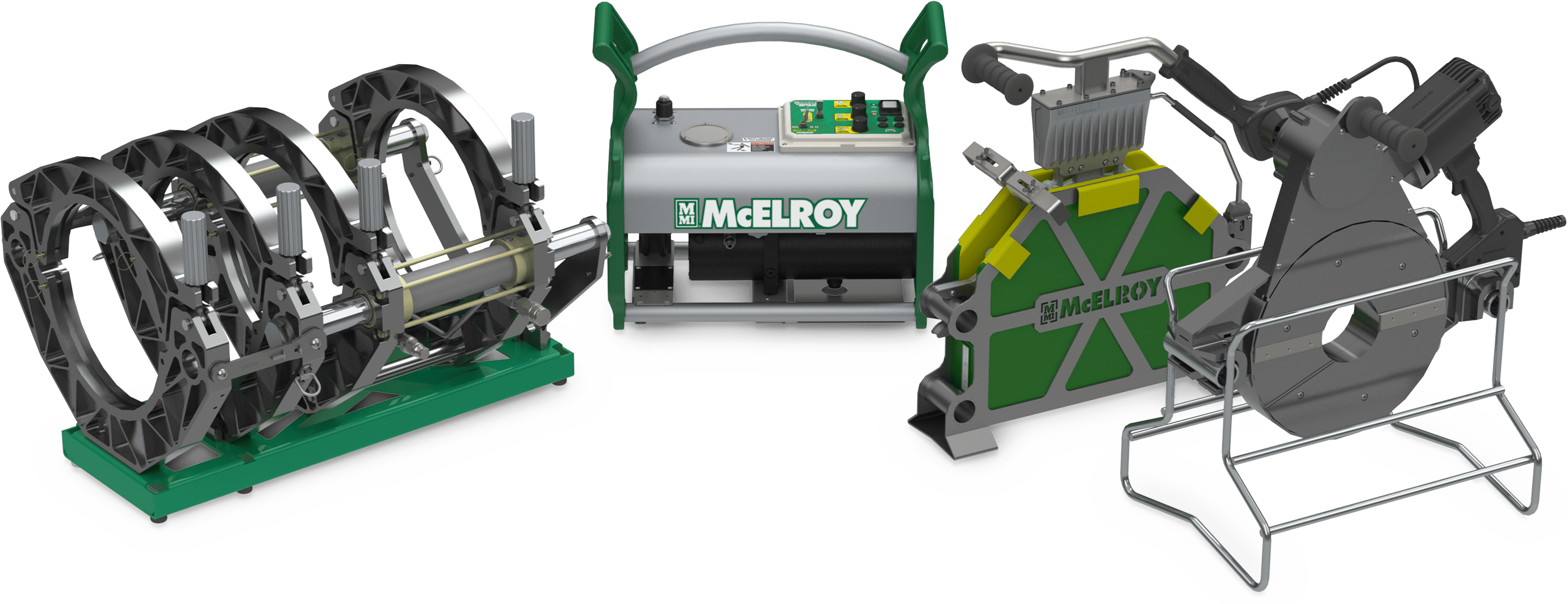

The Acrobat™ 315 fusion machine for 200mm to 315mm offers the best capabilities for butt fusion in today’s most advanced piping systems. With its optimal weight and compact design, the Acrobat™ is an easy machine to manipulate whether you’re fusing pipe in the ceilings, the walls or the ground.
Resources:
Data Sheet
Operations Manual
Welding Parameters
Ideal Applications Include:
Please refer to the Welding Selection Chart for ideal applications.
Specifications:
Size Range:
200mm – 315mm (8″ – 12″ nominal)
Piping:
Materials:
Power:
120V (240V optional)
Dimensions:
30″ x 25″ x 22″
Weight:
3-Jaw: 132 lbs.
4-Jaw: 157 lbs.
Shipping Dimensions:
46″ x 50″ x 32″
Shipping Weight:
450 lbs.
- Compact and lightweight with removable upper jaws for easy maneuvering in tight spaces
- Configures from 4-jaw to 3-jaw carriage without tools for quick adjustment
- Narrow jaws allow fusions to most flanges and fittings
- Facer with inline motor and gear reduction for lightweight, compact assembly; squeeze trigger makes locking and unlocking from the carriage easier
- Lightweight heater and guide rod latching system eliminates the need to hold the heater in place during overhead fusions
- Hard-anodized aluminum wear surfaces resist corrosion, extend machine life
- DataLogger® compatible
- Butt Fusion
- IPS inserts available for 8” and 10”
- Use of the DataLogger® with the Acrobat™ series of tools will record the weld process from start to finish.
