Butt Welding

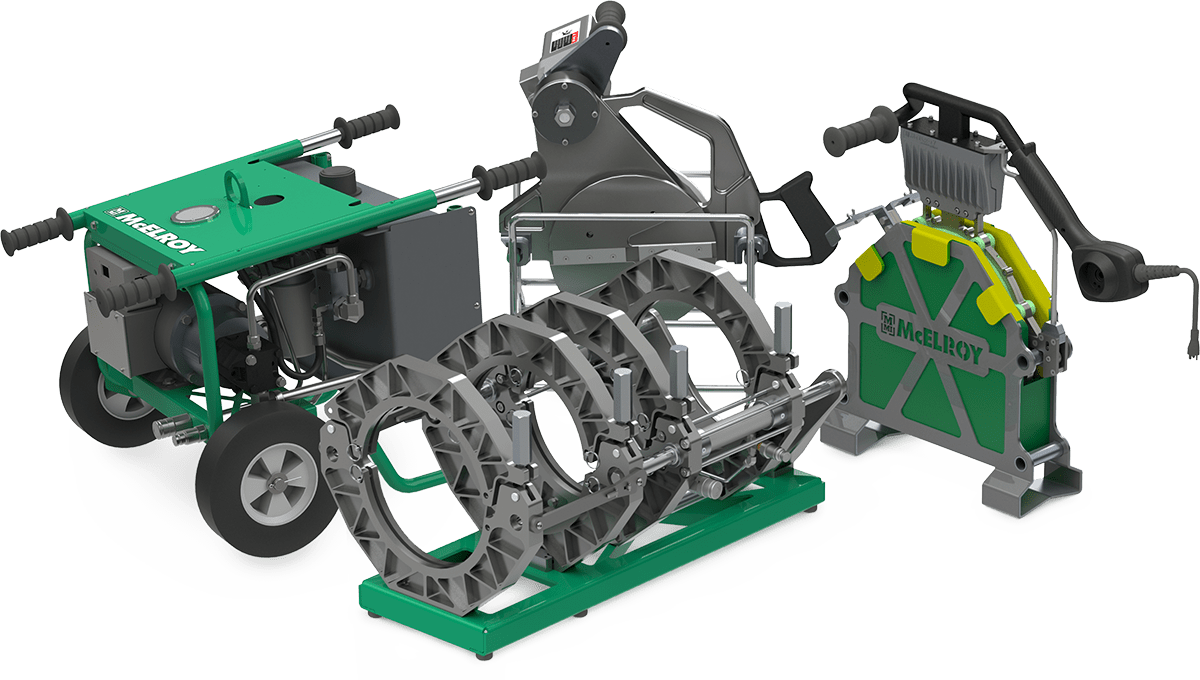

Acrobat™ 250
Available for purchase or rental
The Acrobat™ 250 fusion machine for 63mm to 250mm offers the best capabilities for butt fusion in today’s most advanced piping systems. With its optimal weight and compact design, the Acrobat™ is an easy machine to manipulate whether you’re fusing pipe in the ceilings, the walls or the ground.
Resources:
Data Sheet
Operations Manual
Welding Parameters
Ideal Applications Include:
Please refer to the Welding Selection Chart for ideal applications.
Specifications
Size Range:
63mm – 250mm (2″ – 10″ nominal)
Piping:
Materials:
Power:
120V (240V optional)
Dimensions:
31″ x 19″ x 17″
Weight:
3-Jaw: 98 lbs.
4-Jaw: 114 lbs.
Shipping Dimensions:
46″ x 50″ x 32″
Shipping Weight:
385 lbs.
- Small footprint, lightweight
- Tool-less conversion from 4-jaw to 3-jaw carriage for tight work spaces
- Single insert design
- Removable upper jaws
- Ergonomic heater handlebar design
- Lightweight heater construction
- Low-power consumption
- DataLogger® compatible
- Premium shipping container serves as work surface
- Open-frame HPU design offers easy access for maintenance
- Adjustable stripper bars for flexibility in fusing fittings
- Butt Fusion
- IPS inserts available for 2”, 3”, 4”, 5”, 6”, and 8”
- Use of the DataLogger® with the Acrobat™ series of tools will record the weld process from start to finish.
