Butt Welding

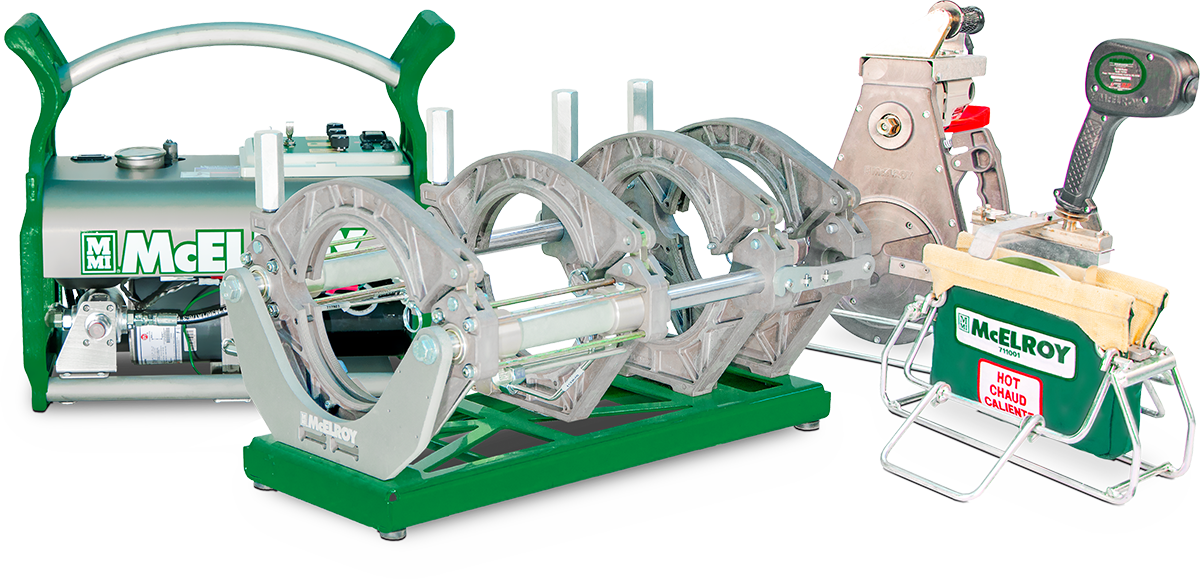

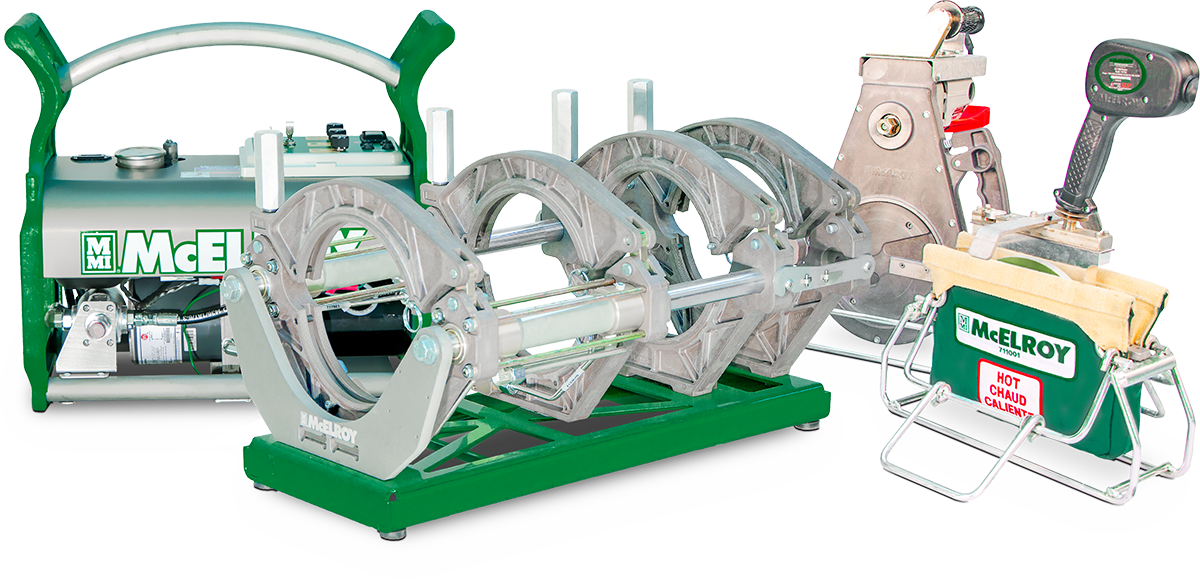

Acrobat™ 180 Med Force
Available for purchase or rental
The Acrobat™ 180 Med Force fusion machine for 2” to 6” IPS offers the best capabilities for butt fusion in today’s most advanced piping systems. The Acrobat™ 180 Med Force is ideally suited with a higher pressure hydraulic system for welding Asahi/America’s HDPE Fluid-Lok® double contained pipe systems.
Resources:
Data Sheet
Operations Manual
Welding Parameters
Ideal Applications Include:
Please refer to the Welding Selection Chart for ideal applications.
Specifications:
Size Range:
2″ – 6″ IPS
Piping:
Materials:
Power:
120V (240V optional)
Dimensions:
24″x15″x14″
Weight:
3-Jaw: 78 lbs.
4-Jaw: 89 lbs.
Shipping Dimensions:
32″ x 45″ x 31″
Shipping Weight:
390 lbs.
- Small footprint, lightweight
- Tool-less conversion from 4-jaw to 3-jaw carriage for tight work spaces
- Narrow jaws allow fusions for most fittings and flanges
- Single insert design
- Removable upper jaws
- Hard anodized aluminum wear surfaces for corrosion resistance
- Low-power consumption
- DataLogger® compatible
- Easy, quick connections to HPU without tools
- Open-frame HPU design offers easy access for maintenance
- Microprocessor-controlled heater with anti-stick, Teflon-coated butt plates
- IPS inserts available for 2”, 3”, 4”, 5”, and 6”
- Butt Fusion
- Use of the DataLogger® with the Acrobat™ series of tools will record the weld process from start to finish.
