Tubing Connections

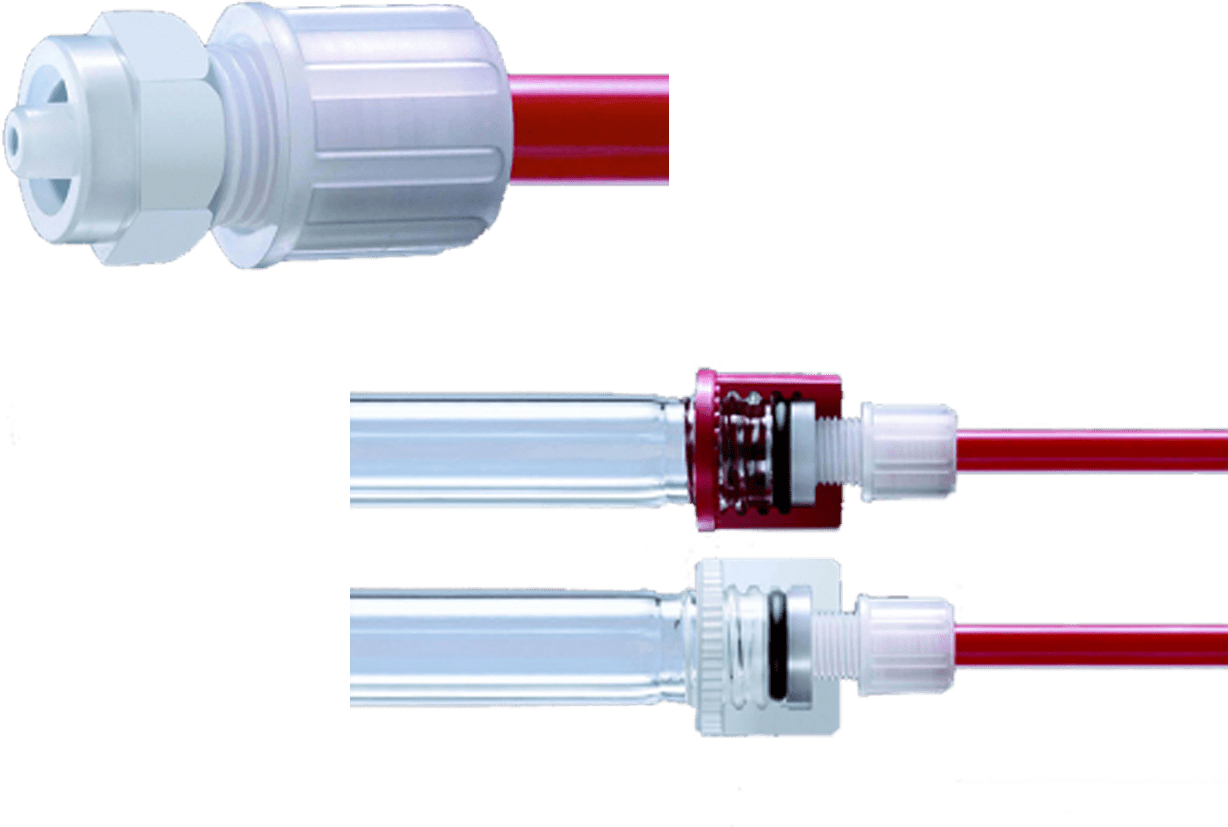

EM-Technik™ Specialty Fittings
3L Luer Lock
The connection principle used in Series 3L from EM-Technik™ entails using a flexible tube connection of Series 1A on the one hand and a luer lock thread according to DIN 13090 on the other hand. A flexible tube can thus be connected, e.g., to the most commonly used disposable laboratory filters.
3G Glass Tube
The connection principle used in Series 3G from EM-Technik™ enables these laboratory connectors to be used as a connection element between a laboratory type glass cylinder with GL thread and a flexible tube.
EM-Technik™ Series 3L Luer Lock
For connecting to luer lock thread. Connection options for Series 1A, 1C and 2M.
Series 3L Luer Lock adapters: consists of luer lock thread (DIN 13090, male/female) for typical disposable lab filters and connections with tube/pipe connector from series 1A, 2M or those with G or UNF male thread.
Series 3L CatalogEM-Technik™ Series 3GL Glass Tube
The Connectors of Series 1 or 2 which can be screwed onto a laboratory type glass cylinder with GL thread.
Series 3G glass thread adapters: connect laboratory-type glass cylinder with GL thread to flexible tube or G male thread.
- Standard sizes: GL15 through GL25
- Standard materials: PP, PVDF, PFA
