Tubing Connections

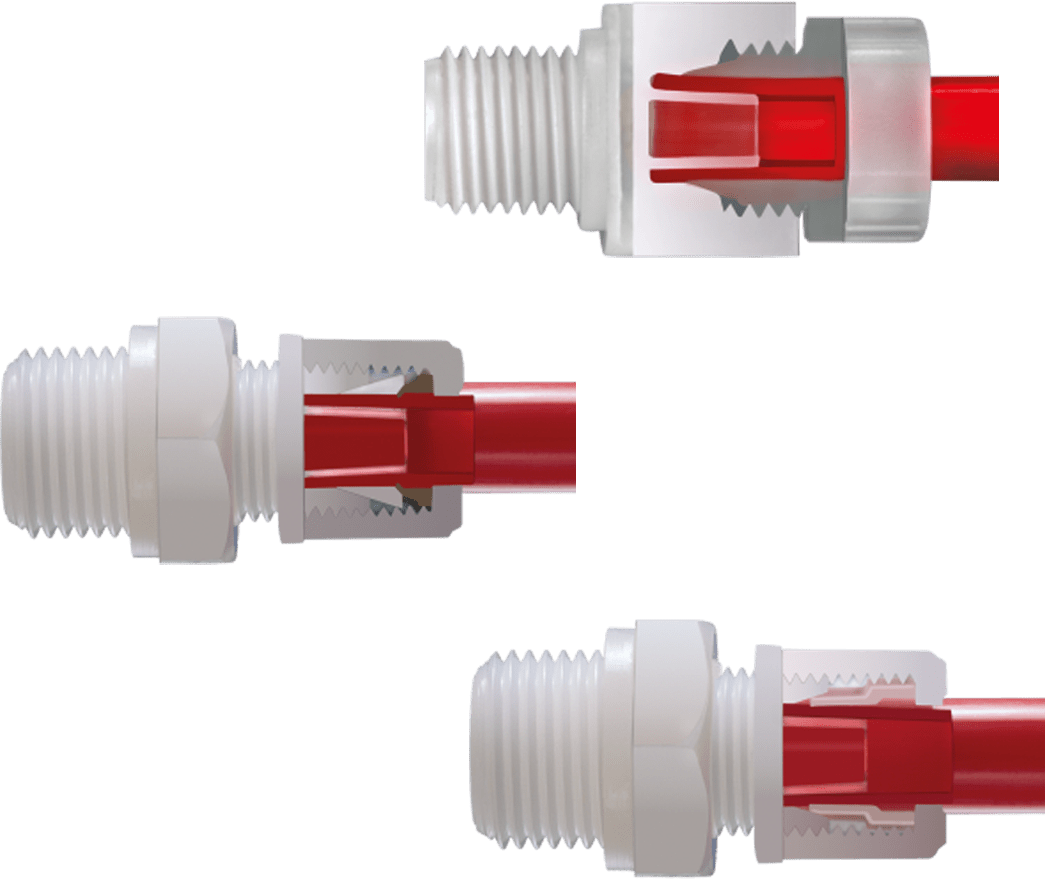

EM-Technik™ Compression Fittings
EM-Technik™ 1+, 1C and 1A fittings are easy to install out compression fittings that require no tools. Fittings operate at high temperature and pressure ratings. Bio/Pharm & Analytical Industry standard.
EM-Technik™ 1+ Compression Fittings
- Integrated clamping ring, no loose ferrules
- Easy install, no tools required
- 230psi pressure rating (at 68° F)
- Standard size range: 1/8″ x 1/4″, 1/4″ x 3/8″, 3/8″ x 1/2″
- Standard materials: PP, PVDF, PFA
EM-Technik™ 1C Compression Fittings
The flexible tube is pressed onto the connecting sleeve integrated onto the connector body. The flexible tube is secured using a sealing ring and a cutting ring locking is via a knurled nut. Available in PFA.
Series 1C connection type: insert the rigid tube or plastic pipe over the integrated connecting sleeve to form a friction-locked and leak-proof connection that can be detached at any time. The sealing ring forms a seal for the connection. By tightening the knurled nut, the cutting ring presses against the tube or pipe to fix it in place.
- Easy install, no tools required
- Reuse existing tubing repeatedly
- High temperature and pressure rating
- Bio/pharm & analytical industry standard
- Standard size range: 1/8″ x 1/4″, 1/4″ x 3/8″, 3/8″ x 1/2″, 1/2″ x 3/4″
- Standard materials: PP, PVDF, PFA
- Available materials: ECTFE, Nylon
EM-Technik™ 1A Compression Fittings
The flexible tube is pressed onto the connecting sleeve integrated onto the connector body. The flexible tube is secured using a clamping ring locking is via a knurled nut. Available in PP, PPn, PVDF.
Series 1A connection type: insert the tube over the integrated connecting sleeve to form a friction-locked and leak-proof connection that can be detached at any time. By tightening the knurled nut, the clamping ring presses against the tube and fixes it in place.
- Clamping ring can be used several times in the same connector
- Connection prevents tubing strain
- Thread manufactured according to DIN, USAS or JIS
- Standard size range: 1/8″ x 1/4″, 1/4″ x 3/8″, 3/8″ x 1/2″, 1/2″ x 3/4″, 2 x 4mm through 18 x 20mm
- Standard materials: PP, PVDF, PFA
