Proline® – Pigmented PP
Click to enlarge

Industrial Piping

Proline® – Pigmented PP

Proline® piping systems are made from the highest quality copolymer polypropylene resins. Proline® is suitable for a wide range of applications with a pH range from 1 to 14 and at temperatures up to 140°F. Proline® copolymer resins exhibit better properties than homopolymer polypropylene. As such, Proline® is the best choice for process waste drains that typically see varying media and temperatures. Proline® uses fusion joining technology with socket, butt and electrofusion available to meet your application requirements.

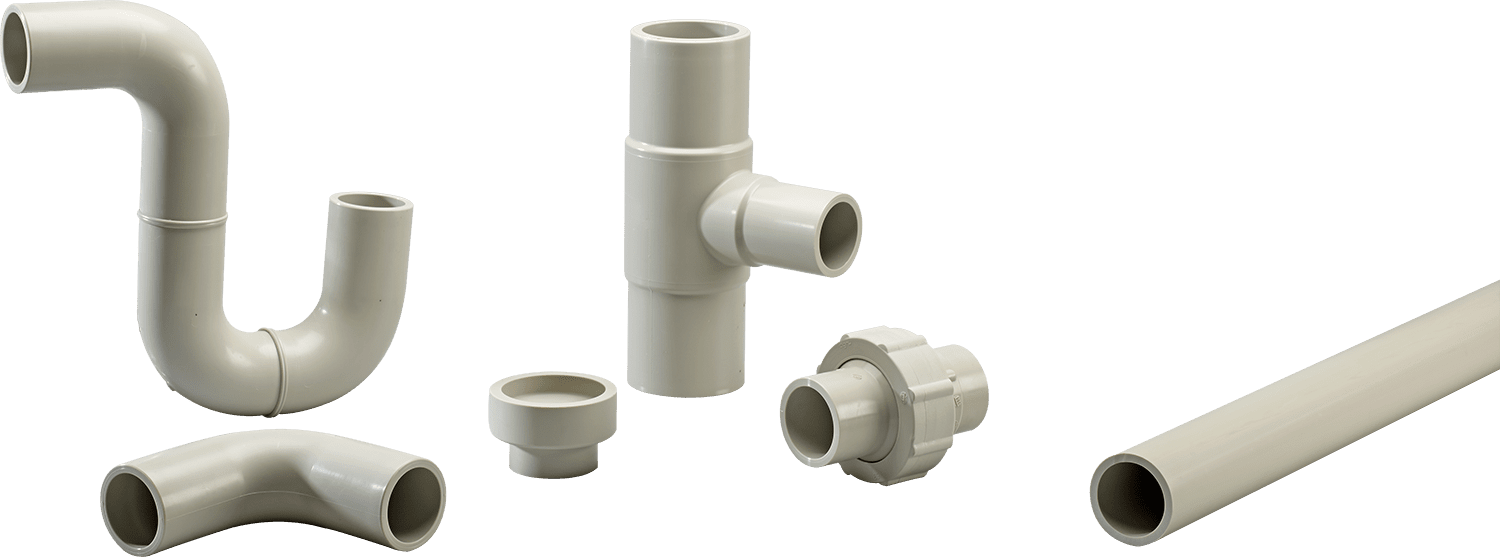

Asahi/America offers a full range of molded fittings and fabricated specialty drainage fittings such as wyes, p-traps, laterals.

Resources:

Data Sheet

Specifications

Ideal Applications Include:

pH range 1-14, process chemical and waste, caustic, acids, industrial water

Certifications:

NSF Certification

Supply Range:

Pipe and Fittings:

  • 20 – 500mm (1/2″ – 20″) SDR11, 150psi
  • 110 – 1200mm (3″ – 48″) SDR33, 45psi
  • Other sizes and SDRs available up to 1400mm (55″)

PRO150

  • PRO150 system is rated at 150psi at 68º F for pressurized systems
  • PRO150 is available from 3/8″ (16mm) to 48″ (1200mm)
  • PRO150 can be joined using butt, socket or electrofusion fittings
  • NSF 61-G certified

PRO45

  • The PRO45 system is rated at 45psi at 68º F
  • PRO45 is available in both pressure and drainage pattern fittings
  • PRO45 is available from 4″ (110mm) up to 55″ (1400mm)
  • PRO45 is joined via butt fusion
  • NSF 61-G certified
