Pro-Vent® Duct System
Click to enlarge

Industrial Piping

Pro-Vent® Duct System

Pro-Vent® piping is specifically designed and manufactured for ventilation and exhaust systems that transport corrosive fumes. It is superior in performance to PVC, fiberglass and sheet metal systems due to its chemical resistance, mechanical properties, solid construction, and ease of installation. It is perfect for applications as diverse as water treatment facilities, electroplating shops, semiconductor wet stations, and pharmaceutical processing.

Resources:

Specifications

Ideal Applications Include:

Laboratories, hospitals, universities, semiconductor manufacturing and metal finishing processes

Certifications:

NSF Certification



Supply Range:

Pipes & Fittings:

PP: 63mm – 1200mm (2″ – 48″)

PPs: 63mm – 1200mm (2″ – 48″)

PPs-el: 90mm – 400mm (3″ – 16″)

PE: 90mm – 1200mm (3″ – 48″)

PVDF: 63mm – 400mm (2″ – 16″)

  • Lightweight Materials
  • Chemical and corrosion resistant
  • Environmentally safe
  • Quick installation
  • Low maintenance and operation costs
  • Multiple Installation Methods

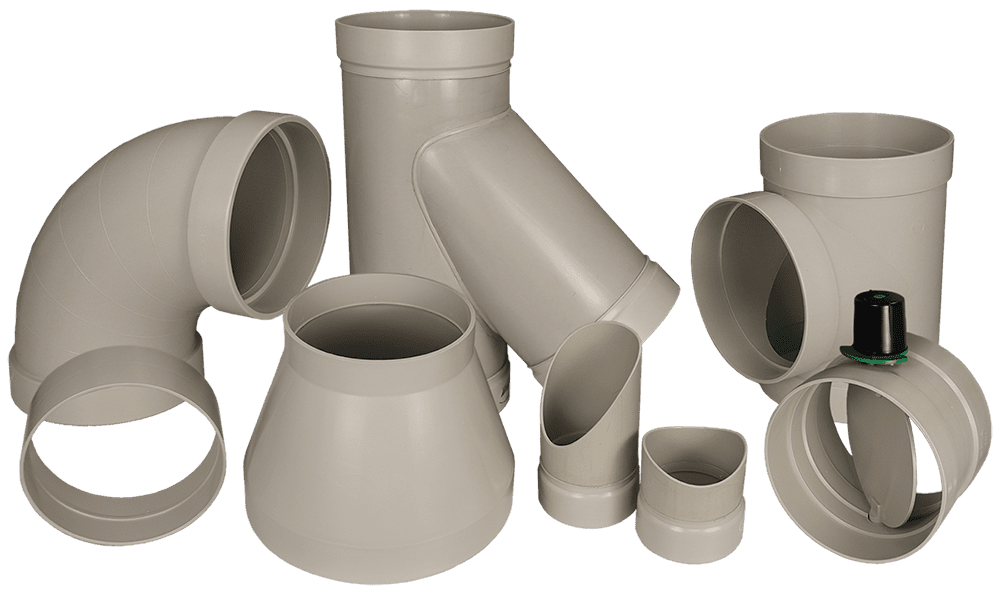

Fittings

  • Bends
  • Couplings
  • Damper units
  • Reducers
  • Tees and wyes
  • Breeches
  • Flanges
  • Flexible connectors
  • Inspection access ports
  • End caps
  • Condensing roof outlets
  • Roof heads
  • Outlet cowls
  • Supply and return grills
  • Wall ducts for through wall application
  • Back flow dampers
  • Saddles
  • Air exhaust louvers
