Chem Proline® Advanced PE
Chem Proline® Options & Accessories
Chem Proline® is composed of the latest evolution in Advanced Polyethylene (PE) resin technology. Advanced PE material possesses excellent physical and mechanical properties. These properties include: stress crack resistance, slow crack growth resistance, ductility, impact resistance, abrasion resistance and brittleness resistance.
Capable of handling some of the harshest chemical applications with a long-term expected useful life, Chem Proline® offers a greater value over metal, FRP, lined steel, or other thermoplastic piping systems like PVC and CPVC. Chem Proline’s superior properties make it the only Polyolefin material able to handle certain chlorinated services like sodium hypochlorite. UV resistant, light weight, proven fusion joining technology, Chem Proline® is perfect for most chemicals found in the water treatment process.

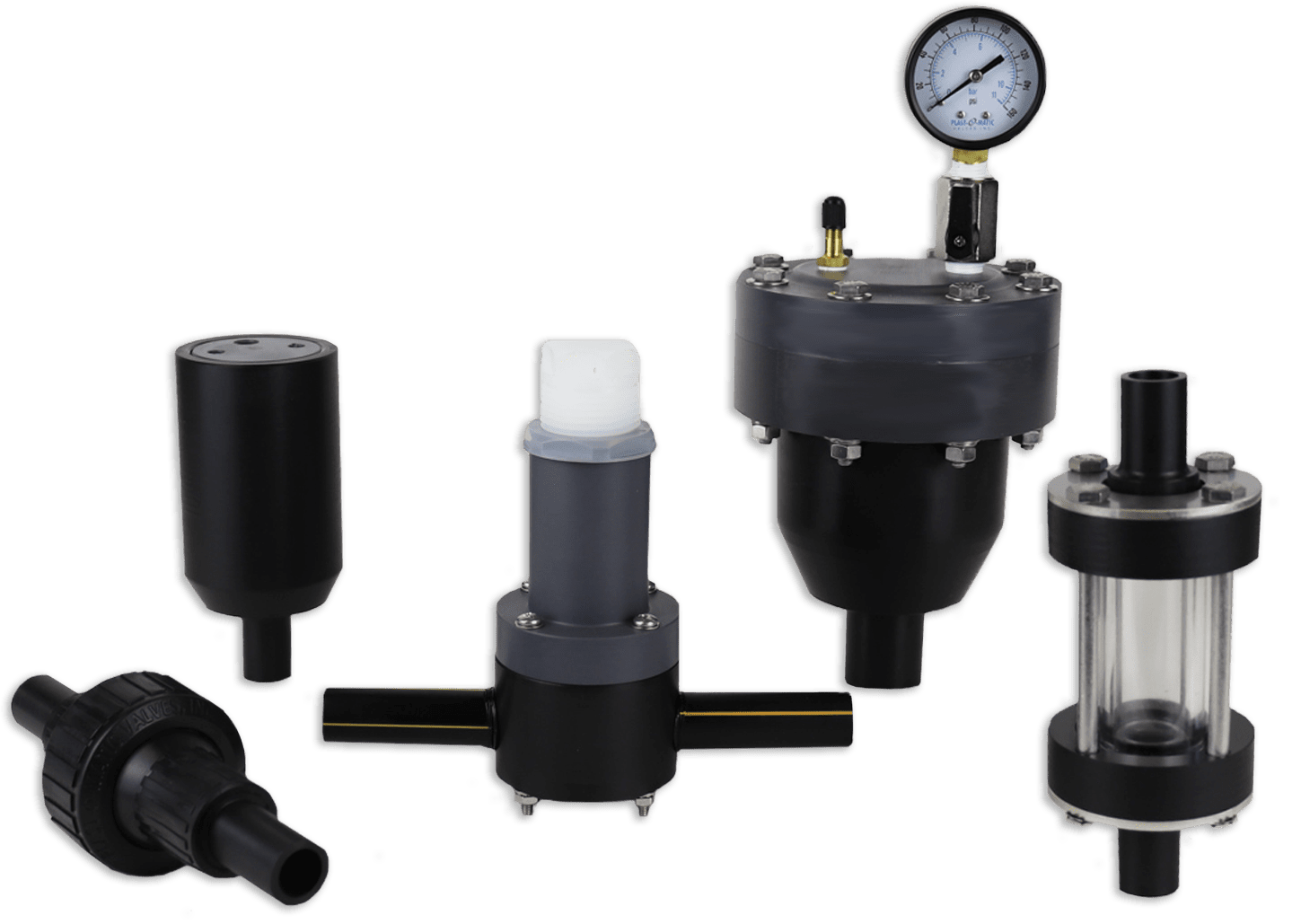

In addition to Chem Proline® Advanced PE pipe, fittings and valves, we also feature a wide array of accessory components including, gauge guards, degassing valves, check valves, back pressure relief valves and pulsation dampeners all available with thread-free connections.
Gauge Guards
- Available without gauge for field instruments, 1/4″ SS FPT threaded port
- gauge ranges available 0-60psi, 0-100psi, and 0-160psi
- 1/2″ advanced PE SDR 7 connection
- PTFE diaphragm prevents corrosion to the gauge/instrument
Degassing Valves
- Automatic bleeding of trapped gas in piping systems
- Ideal for off-gassing chemicals, like sodium hypochlorite
- Easy disassembly for cleaning
- 1/2″ Advanced PE connection
- Available in FKM or EPDM
Diaphragm Check Valves
- Diaphragm interior seals at much lower pressures than ball checks
- Socket ends ideal for chemical feed skids
- Short, compact design
- Sizes offered: 20mm, 25mm, and 32mm socket
- Available in FKM and EPDM
Back Pressure/Relief Valves
- Works as back pressure relief valve
- Available in spigot, socket union, or butt union
- Sizes offered: 20mm, 25mm, and 32mm
Pulsation Dampener
- 10-cubic-inch body minimizes pulsations through pipe system from chemical feed pump
- Standard 32mm spigot connection
- Factory reduced 20mm or 25mm also available
- Available in FKM or EPDM
Sightglass
- Double wall construction
- Inner Pyrex tube for chemical resistance
- Outer acrylic tube for durability and protection of inner tube
- Sizes offered: Only available in 1/2″ Advanced PE spigot for butt or socket weld
- Available with FKM and EPDM end seals
