High Purity Valves

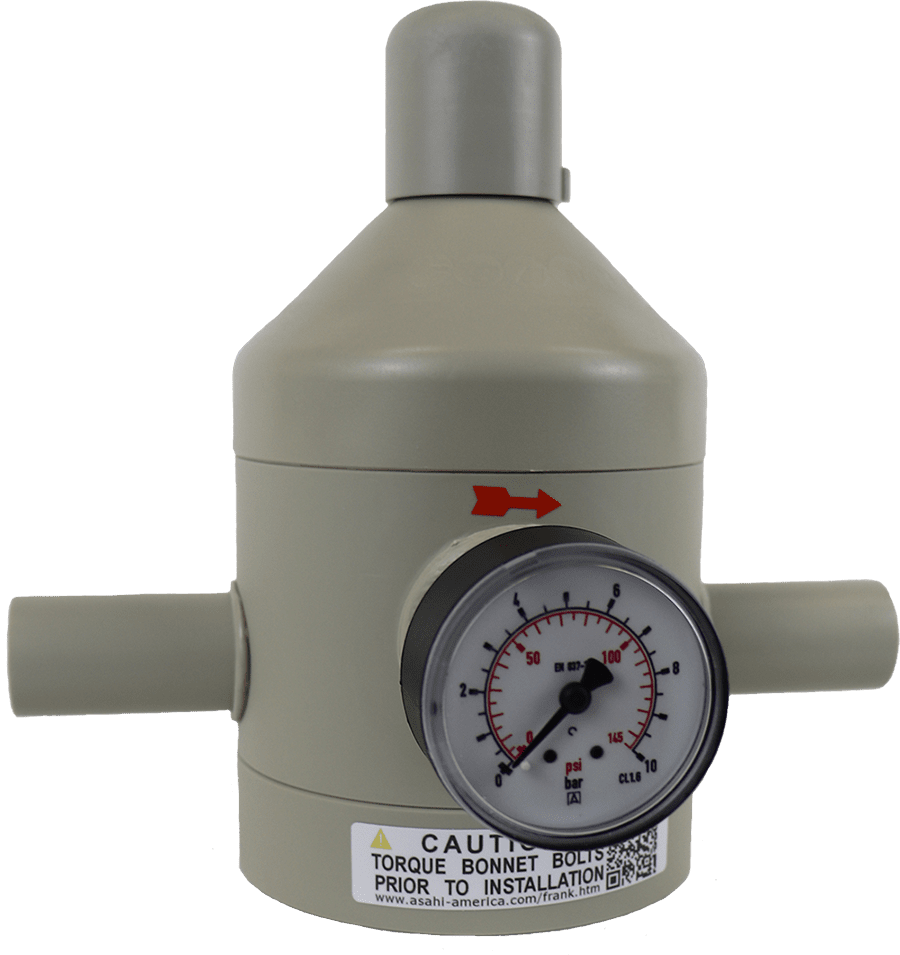

V82/182 Pressure Regulator 20 – 110mm (1/2″ – 4″)
The V82/182 pressure regulator controls upstream pressure fluctuations to critical points of use. The regulator has no wetted metal components, includes an integral pressure gauge isolated from the media and can be adjusted in-line under pressure.
Resources:
Data Sheet
Ideal Applications Include:
UPW, WFI, RO/DI Systems, Semiconductor, Photovoltaic, Pharmaceutical, Biotech, Institutional, Laboratory Research, Nanotech
Specifications:
Body Material:
PolyPure® PPn & PP-Pure® Pigmented PP
Seals:
EPDM or PTFE
Valve Size:
20 – 110mm (1/2” – 4”)
Diaphragm:
PTFE backed EPDM, or EPDM
Maximum Pressure:
150psi @ 68° F
- Most extensive size range in the industry
- Process fluid is isolated from mechanical parts
- Adjustable under working pressure
