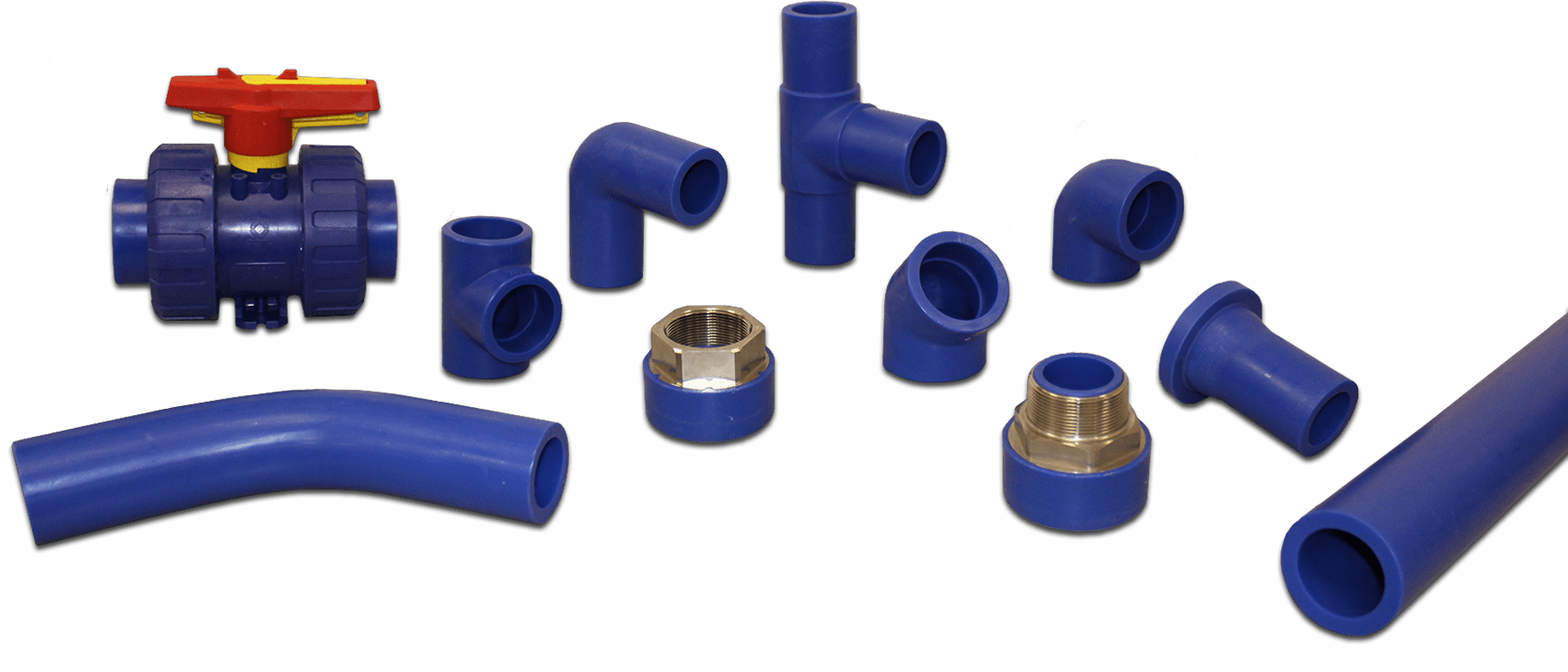

Air-Pro® Compressed Air Piping
Air-Pro® is the only PE piping system approved for use and warranted by the manufacturer for compressed air applications. Air-Pro® meets CAL-OSHA requirements for compressed air.
Air-Pro’s® specially formulated PE resins are resistant to both synthetic and mineral compressor oils.
Resources:
Catalog
Specifications
Ideal Applications Include:
Above and below ground compressed air, inert or non-reactive gases
Certifications/Warranty:
Supply Range:
Pipes & Pipe Fittings:
20 – 110mm (1/2″ – 4″) SDR 7.4 / 230psi
160 – 315mm (6″ – 12″) SDR 11 / 150psi
- Specifically designed for compressed air and gas service
- Excellent chemical and corrosion resistance
- Ideal for corrosive and marine environments
- Increased compressor efficiency due to low friction (Hazen & Williams C factor of 150)
- Easy installation via socket, butt and electro-fusion joining
- Thermal fusion is more reliable than metal welded, soldered, or mechanical joints
- High pressure capacity (rated for 230 PSIG @ 68° F and 100 PSIG @ 140° F)
- Lightweight materials reduce transportation costs
- Wide temperature range: 14° F – 140° F
- Resistant to all synthetic and mineral-based compressor lubricants including:
- Polyalpha-olefin (POA)
- Polyol-ester (POE)
- Diesters
- Meets Cal/OSHA requirements for safe transport of compressed air
- Suitable for above ground and direct-burial installations
- Designed for minimum expected useful life > 50 years up to 104° F
