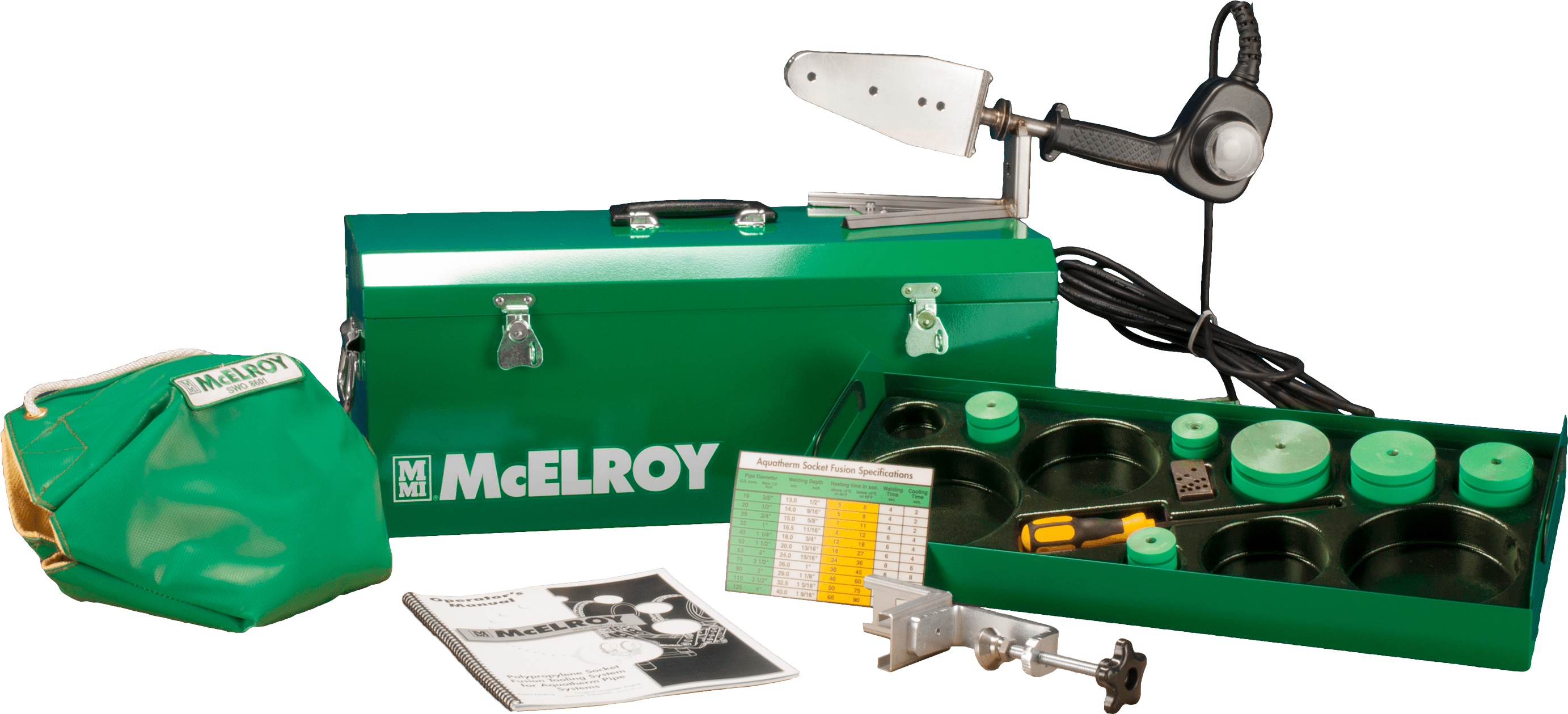

Hand Held Socket Welder
Click to enlarge

Socket Welding

Hand Held Socket Welder

Available for purchase or rental
Socket Fusion Kits are ideal for installing fittings for pipe diameters from 20mm to 63mm. These tools are designed specifically to socket fuse polypropylene (PP), polyethylene (PE), and polyvinylidene (PVDF) pipe and fittings. The use of a hand socket tool is only recommended for 20mm-32mm, larger sizes require a SmartFab™ bench socket or the Spider™ tool for the force required.

Resources:

Data Sheet

Operations Manual

Welding Parameters

Ideal Applications Include:

Please refer to the Welding Selection Chart for ideal applications.

Specifications:

Size Range:

20mm – 63mm (1/2″ – 2″)

Piping:

See Welding Selection Chart

Materials:

See Welding Selection Chart

Power:

110V (240V optional)

Weight:

3.5 lbs.

Shipping Dimensions:

30″ x 12″ x 12″

Shipping Weight:

35 lbs.

  • Heaters offer microprocessor control to precisely set and monitor heater temperature in all field conditions
  • Heaters are fully field serviceable, including the electronics
  • 20 ft. power cord to minimize electrical connections
  • Two heater stands included in all Heater Kits, providing three mounting options: Toolbox, Bench, or Freestanding
  • Socket adapters have a durable Teflon coating with pipe diameter size and part number clearly marked
  • Durable custom toolbox organizes, stores and protects individual tools
  • Socket adapters available in DVS Type-A, DVS Type-B, and IPS
  • Socket Fusion
