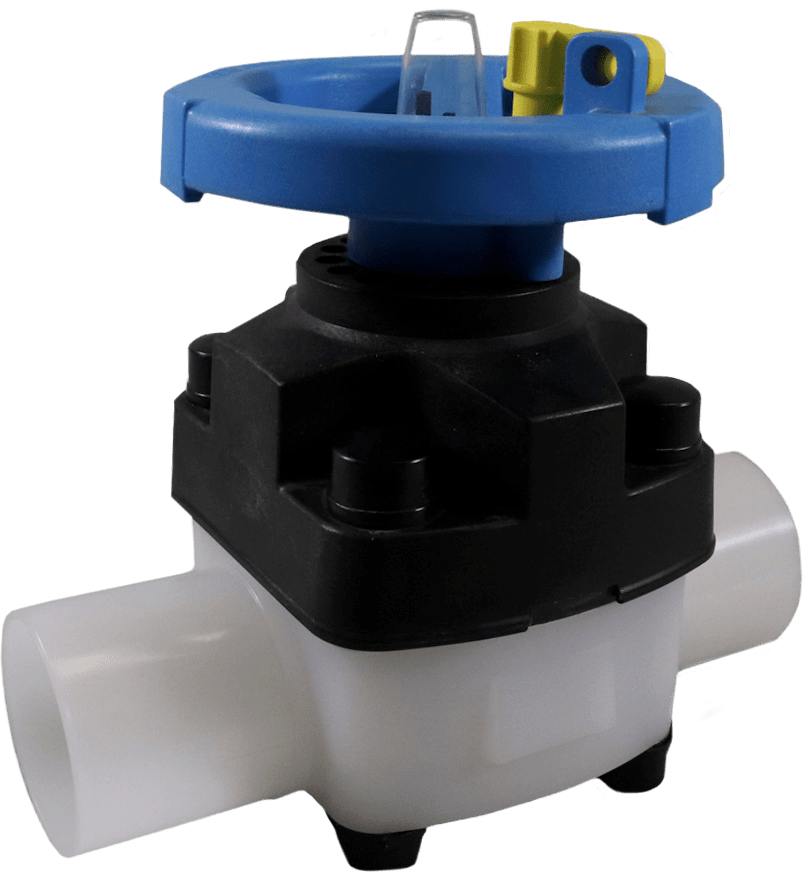

T-342 Diaphragm Valves

The T-342 diaphragm valves are equipped with an integral lock-out device to prevent unauthorized use, ensuring secure operation. They are rated for 150psi at 68° F and are designed to handle high temperatures, making them versatile for various demanding applications. Additionally, the valves are fully serviceable, with replacement diaphragms readily available to extend their operational lifespan and maintain performance.

Resources:

Data Sheets

Ideal Applications Include:

Isolation & Throttling Valves, UPW, WFI, RO/DI Systems, Semiconductor, Photovoltaic, Pharmaceutical, Biotech, Institutional, Laboratory Research, Nanotech

Supply Range:

Purad® UHP PVDF

T-342 diaphragm valves: 20 – 110mm (1/2″ – 4″)

PolyPure® Natural Polypropylene

T-342 diaphragm valves: 20 – 63mm (1/2″ – 2″)

PP-Pure® Pigmented Polypropylene

T-342 diaphragm valves: 20 – 110mm (1/2″ – 4″)

  • Valves are supplied with PTFE backed EPDM diaphragm seals
  • Valves are cleanroom produced and assembled
  • T-342 valves come standard with integral lockout device to prevent unauthorized cycling
  • All valves are 150psi rated at 68° F
  • Air-to-spring (open & closed)
  • Air-to-air
  • Min/max stroke limiter
  • Electric position feedback
  • Magnetic position feedback
  • Manual override handwheel
