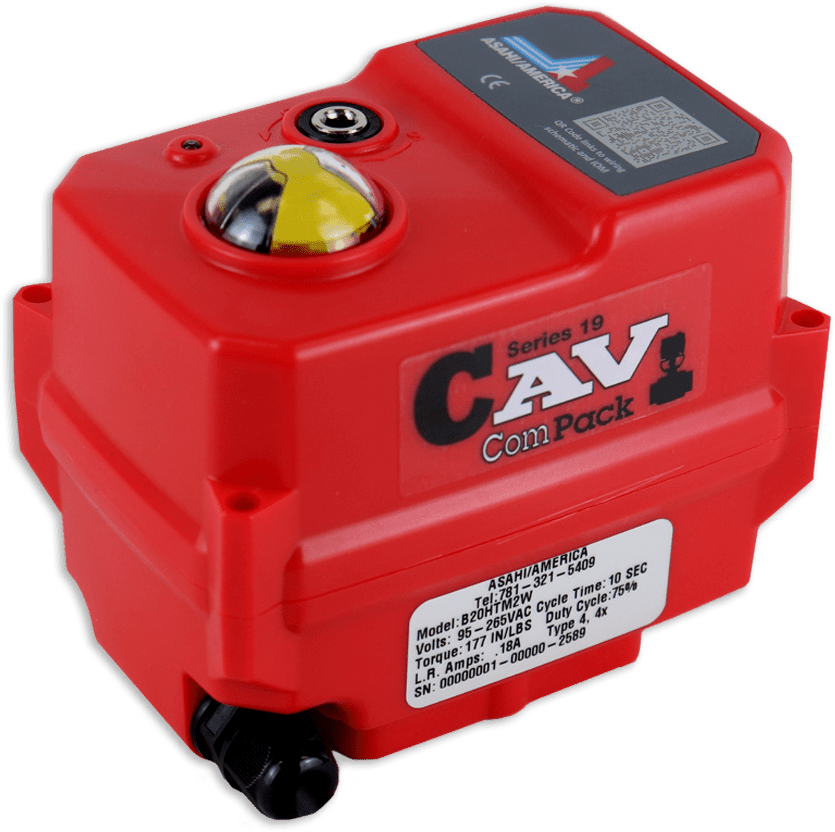

Series 19 CAV Compact On/Off Electric Actuator
Click to enlarge

Series 19 On/Off

Series 19 CAV Compact On/Off Electric Actuator

The basic Series 19 CAV Com Pack® is a mechanical-type actuator available as an on/off unit. The CAV Com Pack® mounts on Asahi/America’s Type-27 Omni® ball valves, Type-21 ball valves, and Type-23 Multiport™ ball valves to provide smooth operation in a compact and lightweight package. The Com Pack® Series 19 fits Omni® ball valve sizes 3/8” to 2”, Type-21 and Type-23 ball valve sizes 1/2″ – 2″ and has a cycle time of 10 seconds per 90 degrees.

Resources:

Data Sheets

Ideal Applications Include:

Remote locations, locations with no air supply, colder temperatures, smaller valves, low cost applications

Specifications:

Sizes:

C20 for 3/8″ – 2″ Omni® Type-27 ball valves

C20 for 1/2″ – 2″ Type-21 ball valves and Type-23 Multiport™ ball valves

Amp Draw:

0.18 Amp

Cycle Time:

Per 90 degrees: 10 seconds

Torque:

177 in-lbs

Electrical Connection:

NEMA 4X cable gland with two-meter color-coded cable

Enclosure:

NEMA 4X

Voltage:

95 VAC to 265 VAC 1Ph 50/60 Hz

24 AC/DC

Max Temp:

150° F

Valve/Actuator Packages

  • Omni® Type-27 Ball Valves

  • Type-23 Multiport™ Ball Valves

  • Type-21/21a Ball Valves

  • Compact: Compact and lightweight actuated valve package that is ideal for OEMs
  • Motor: Reversing, brushless DC motor
  • Multi-voltage: 95 VAC to 265 VAC or 24 VAC/VDC
  • Gear Train: Permanently lubricated solid gears
  • Corrosion Resistant Enclosure: NEMA 4X enclosure with stainless steel trim
  • Position Indication: Highly visible dome position indicator
  • LED Position Indication: RED closed, GREEN open
  • Manual Override: Manually cycle valve via electroless nickel-plated hex key
  • Auxiliary Contacts: Open and closed dry contacts rated 0.1 Amp @ 250 VAC, 0.5 Amp @ 30 VDC
  • Space Heater: A two-watt heater is internally wired to limit condensation
  • QR Code: Links to user manual; includes wiring schematic
  • RoHS Compliant
