Double Containment Piping

Poly-Flo® – Advanced PE & PP

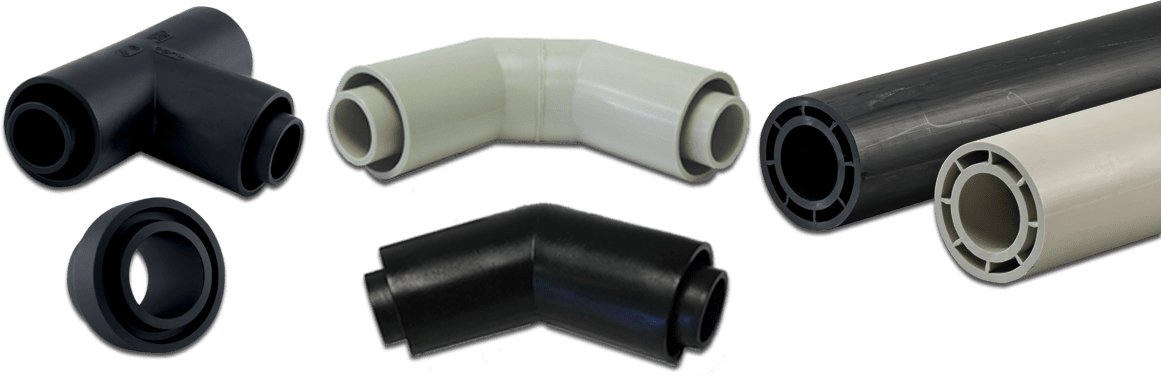

Asahi/America’s Poly-Flo® PP-R and Advanced PE co-extruded double containment piping system offers time saving on each project. Low cost and easy installation makes Poly-Flo® the ideal system for drainage systems, pressurized transfer lines and industrial applications needing up to 4″ carrier pipe.

Available in 1×1-1/2, 2×3, 4×6, and 6×9 size ranges, Poly-Flo® is designed for installations with tight space constraints, water treatment facilities using multiple chemicals and outdoor applications. In addition to pipe, the system includes full pressure fittings, drainage fittings, machined fittings and specialty dogbones for all standard size ranges.

Poly-Flo® is available in black PE and euro grey PP-R and operates to 150psi at 68° F. The co-extrusion allows Poly-Flo® to act like a single wall piping system with respect to expansion and contraction and eliminates separation during directional drilling. The SDR design allows for full pressure rating while requiring no special welding clamps during joining. Poly-Flo® can be easily joined using standard welding equipment and does not require special inserts.

Resources:

Data Sheet

Specifications

Ideal Applications Include:

Installations with tight space constraints, water treatment facilities using multiple chemicals, outside applications – due to UV resistance; systems where thermal expansion & contraction are present

Supply Range:

Pipes & Fittings:

1 x 1-1/2, 2 x 3, 4 x 6, 6 x 9 (32mm x 50mm, 63mm x 90mm, 110mm x 160mm, 160mm x 225mm)

Ratings:

150psi at 68° F and Drainage

Materials:

Advanced PE and PP-R

Available Fittings:

Full Pressure Fittings, Drainage Fittings, Machined Fittings, Dogbones®

Production

  • Cost savings vs. fabricated systems
  • More uniform construction
  • Higher safety

Co-Extrusion

  • Acts like single wall pipe
  • Fewer concerns during expansion & contraction
  • Eliminate separation during directional drilling

SDR Design

  • Full pressure rating
  • No special welding clamps
  • Similar logistics to single wall products
