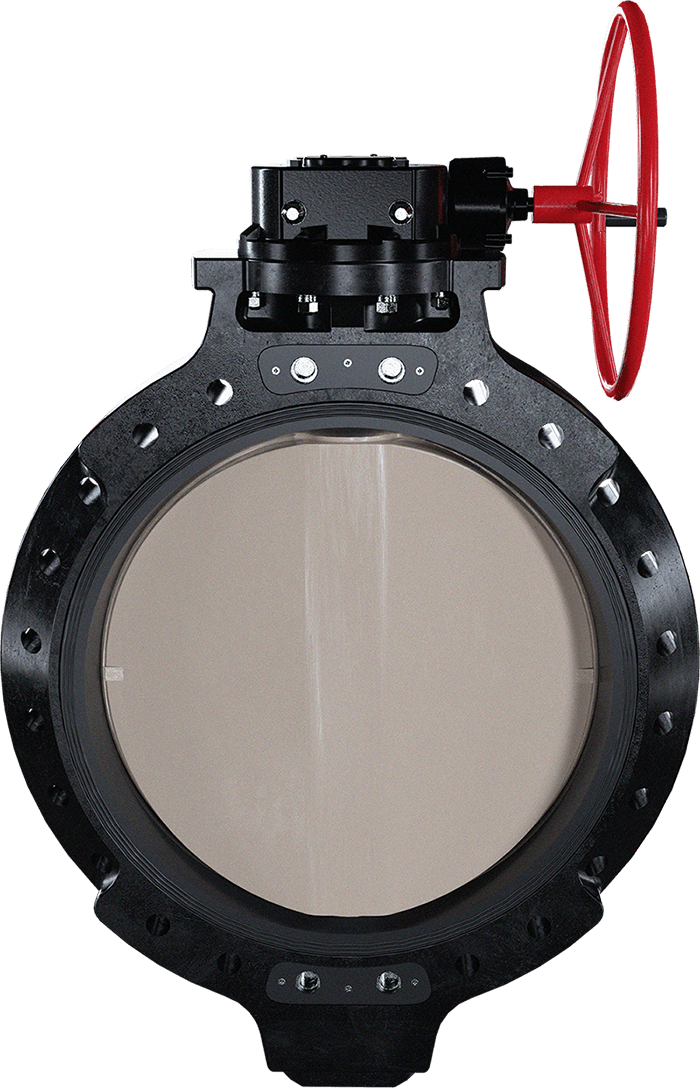

PDCPD Type-58 Large Diameter Wafer Gear Butterfly Valve (28″ – 36″)
Click to enlarge

Butterfly Valves

PDCPD Type-58 Large Diameter Wafer Gear Butterfly Valve (28″ – 36″)

The 28” – 36″ Type-58 butterfly valve has been re-engineered using the latest technology and production methods. This ensures a quality product from design through production resulting in high performance and shortened delivery times.

Resources:

Data Sheet

Ideal Applications Include:

Aquariums, Landfills, Mining, Desalination Facilities, Power Plants

Specifications:

Size:

28″ – 36″

Body Materials:

PDCPD

Seat Materials:

EPDM, FKM

Disc Materials:

Polypropylene, PVDF

  • Injection molded PDCPD body with ANSI Class 150 machined bolt pattern
  • Polypropylene or PVDF disc
  • EPDM or FKM full boot liner
  • Face-to-face dimensions meets ISO 5752 short pattern
  • Non-wetted stainless steel stem
  • Rotork gear operator
