Labcock® Ball Valve (1/4”)

This is a quarter-turn plastic (PVC) manual ball valve. It has many process control monitoring and fluid sampling uses in the laboratory. These are quarter-inch valves, which come in seven configurations. They may be used for simple on/off service or for calibrating flow.

Resources:

Data Sheet

Specifications

Ideal Applications Include:

On/Off, chemical processing, aquariums, mining, water treatment, landfills

Certifications:

NSF Certification



Specifications:

Sizes:

1/4″

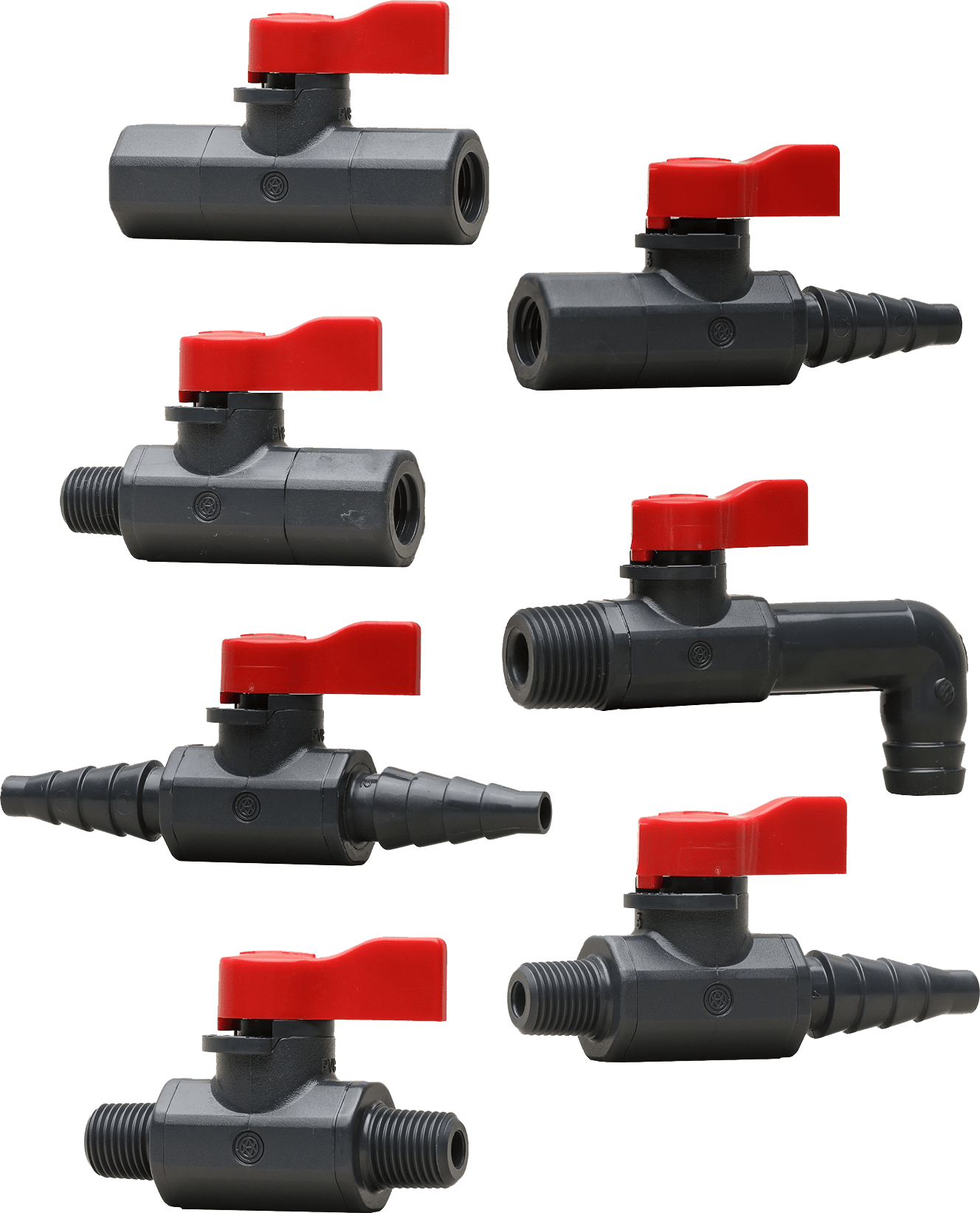

Models:

Male Thread x Hose (ID 3/8″)
Male Thread x Female Thread
Hose x Hose / Male Thread x Male Thread
Female Thread x Female Thread
Male Thread x Elbow (OD .63″)
Female Thread x Hose
*Size 1/4″ PVC/EPDM Models NSF-61 Certified

Bodies:

PVC

Seats:

EPDM

Seals:

EPDM

  • Pressure rated at 150psi at 120º F (water)
  • Precise fingertip control
  • Calibrated flow indicator
  • Rugged unibody construction, sturdy stem
  • Full vacuum-rated, 29.9″ Hg
  • 90º turn operation with lever handle
  • Cv = 1.6
