Ball Valve Options

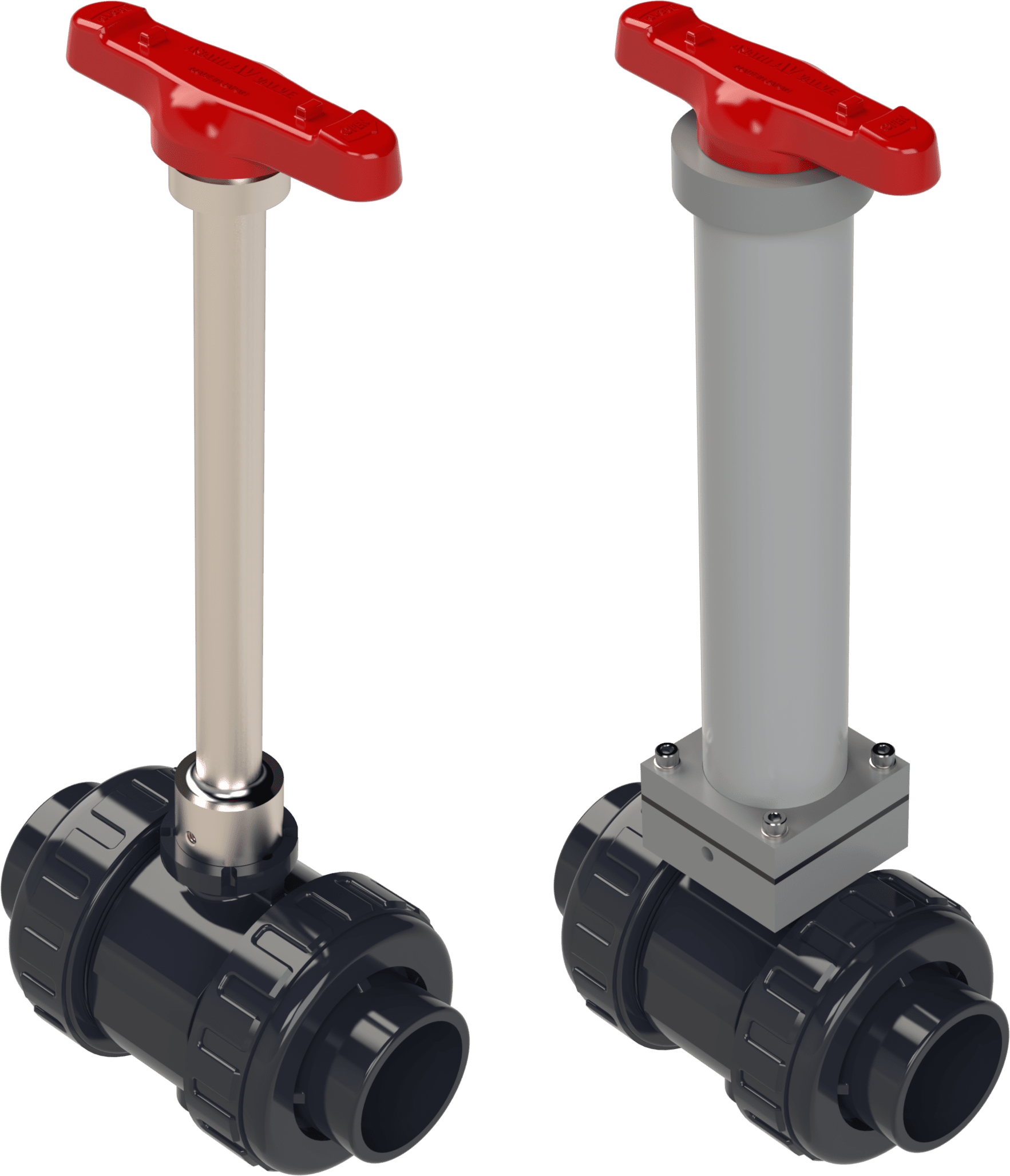

Type-21 and Type-23 Ball Valves Single Piece and 2-Piece Stem Extensions

Stem extensions are valve handle extensions, designed for use on valves located areas where standard configuration valve handles are inaccessible. They provide a direct connection between the actual valve stem and the relocated valve handle. Single piece stem extensions attach direct to the valve stem and the moving stem is exposed. Two-piece stem extensions consist of not only the single piece stem extension, but are also provided with an outer housing. The outer housing acts an outer sleeve which fits over the inner stem extension protecting the moving inner stem extension in buried applications. Support brackets and plates are typically used with both types of extensions. They provide a strong anchoring point for heavy gear-operators on butterfly valves, or prevent lateral movement on single piece lever handle extensions.

Type-21/21a Ball Valve Stem Extension Kit Option (1/2″ – 2″)
The Type-21/21a ball valve stem extension kits are the ideal solution for accessing valves that are installed in out of reach locations. Machined from PVC bar stock to exact specifications, for a factory fit and finish. Available for valves 1/2” – 2”, extension kits are supplied ready to be assembled and installed using your existing or a new Type-21 ball valve, and Schedule 40/80 PVC pipe. Cut your pipe to the desired length, solvent cement to the extension couplings, and install on the valve for a simple and effective stem extension.
