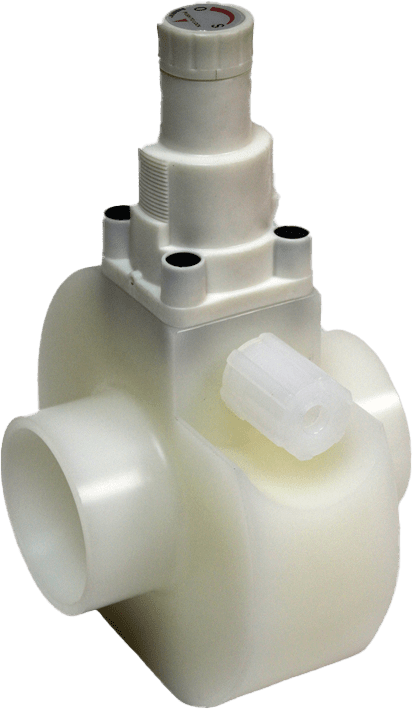

Dymatrix® MPV Sampling Valve
Click to enlarge

Manifold Valves

Dymatrix® MPV Sampling Valve

  • Inline sampling valve assembly eliminates dead leg and crevices
  • Clean PTFE diaphragm material
  • Poppet diaphragm close to mainline
  • Proven Dymatrix® MPV valve and bonnet technology
  • Manual Push2Lock™ handle is easy to use

Resources:

Data Sheet

Ideal Applications Include:

Semiconductor, Bio-Pharm, Chemical

Specifications:

Sizes:

Valve Outlet: 1/4″, 3/8″ and 1/2″ in flare or female NPT

Valve Body Inline: 20 – 250mm (1/2″ – 10″) PVDF pipe in SDR 21 & 33

Valve Inlet 2-Way: 1/4″, 3/8″ and 1/2″ in spigot or male NPT

Body Material:

Purad® PVDF

Diaphragm:

PTFE

Seals:

Non-wetted FKM

  • Inline sampling valve assembly eliminates dead leg and crevices
  • Clean PTFE diaphragm material
  • Poppet diaphragm close to mainline
  • Proven Dymatrix™ MPV valve and bonnet technology
  • Manual Push2Lock™ handle is easy to use
