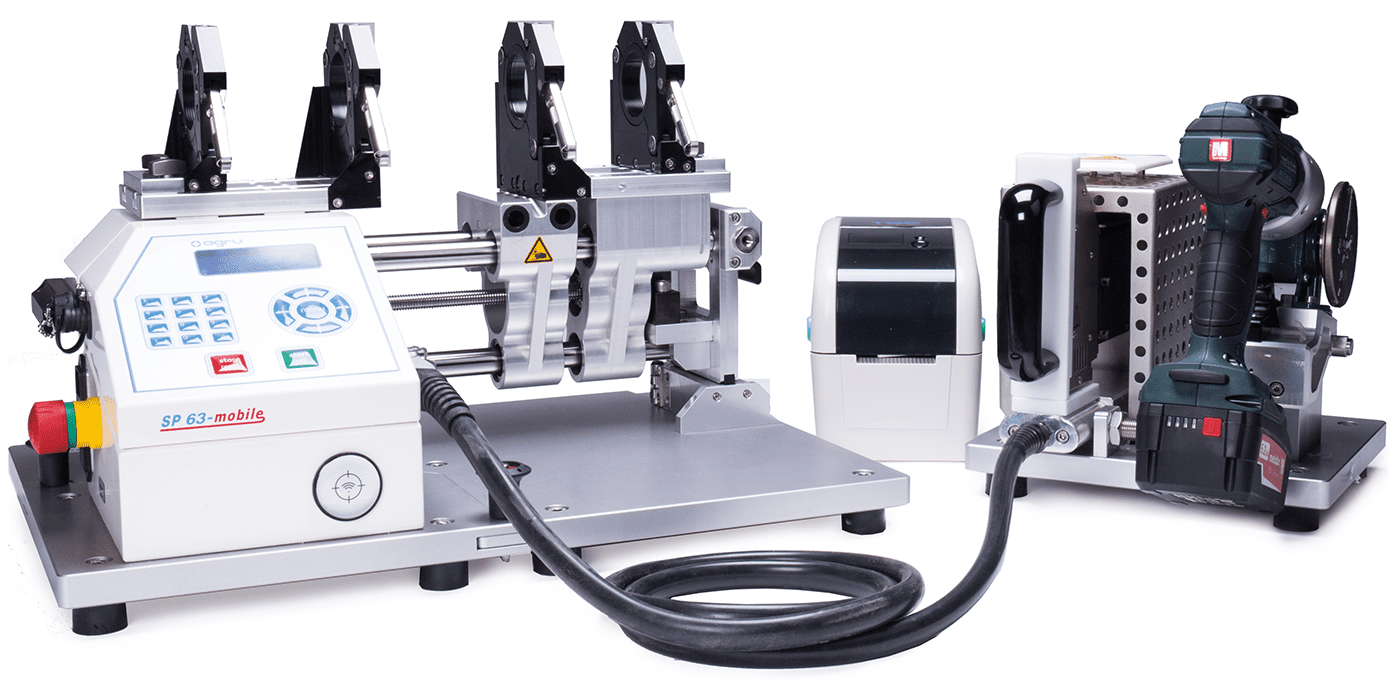

SP 63-S Mobile
Click to enlarge

SP Series High Purity Welding

SP 63-S Mobile

Available for rental only
This system is ideal for executing final remote tie-in welds, boasting a compact design that allows for operation in tight spaces. It features force-controlled welding for precision and consistency, ensuring high-quality results. The automated clamp movement and control further enhance efficiency during the welding process. Additionally, it includes a printer for generating cleanroom labels, streamlining documentation and compliance in sensitive environments.

Resources:

Data Sheet

Operations Manual

Ideal Applications Include:

Best used for PP, PVDF thermoplastic piping system welds.

Specifications:

Size Range:

20mm – 63mm (1/2″ – 2″)

Piping:

Single Wall

Materials:

PE, PP, PVDF, ECTFE

Power:

Plug: 110V

Tool: 230V / 15A

Dimensions:

22″ x 15″ x 13″

Weight:

70 lbs.

Shipping Dimensions:

48″ x 40″ x 37″

Shipping Weight:

500 lbs.

  • Ideal for final remote tie in welds
  • Compact design for tight spaces
  • Force controlled welding
  • Automated clamp movement and control
  • Printer and cleanroom labels
