SP 110-S V3
Click to enlarge

SP Series High Purity Welding

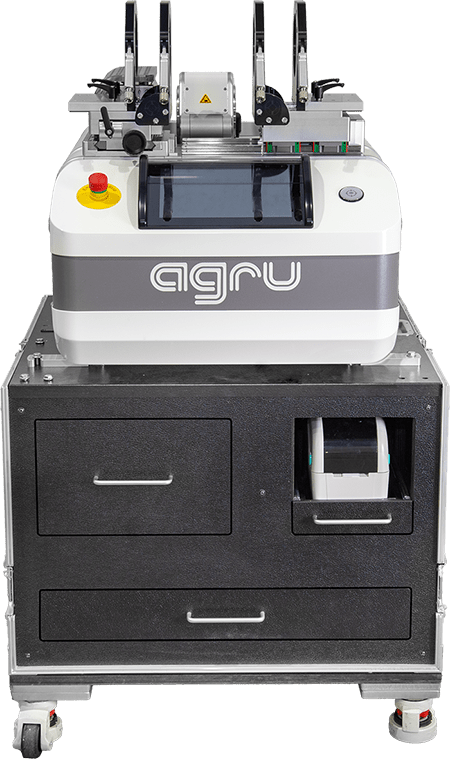

SP 110-S V3

Available for purchase or rental
The next generation of IR technology, the SP 110-S V3 controls all equipment movements and parameters during each phase of the welding process (heating, change over, joining and cooling). The heating element and clamps are precisely controlled and moved by the welding equipment. This full automation eliminates operator influence during the fusion process and provides unmatched repeatability.

Resources:

Data Sheet

Operations Manual



Specifications:

Size Range:

20mm – 110mm (1/2” – 4”)

Piping:

Single wall

Materials:

PP, PPn, PVDF, Poly-Flo, ECTFE, PFA(optional)

Transformer Power:

Plug: 110V

Tool: 230V / 15A

Working Dimensions:

34″ x 30″ x 51″

Shipping Dimensions:

43″ x 36″ x 61″

Shipping Weight:

835 lbs.

  • Automated planing depth feature
  • Automated fusion process
  • Internal validation program
  • Printer and cleanroom labels
  • 110 to 230 VAC power converter
  • Ideal for shop operation
  • IR Welding
  • PFA capable tool – available by request only
  • SP 110-S RFID operator card
