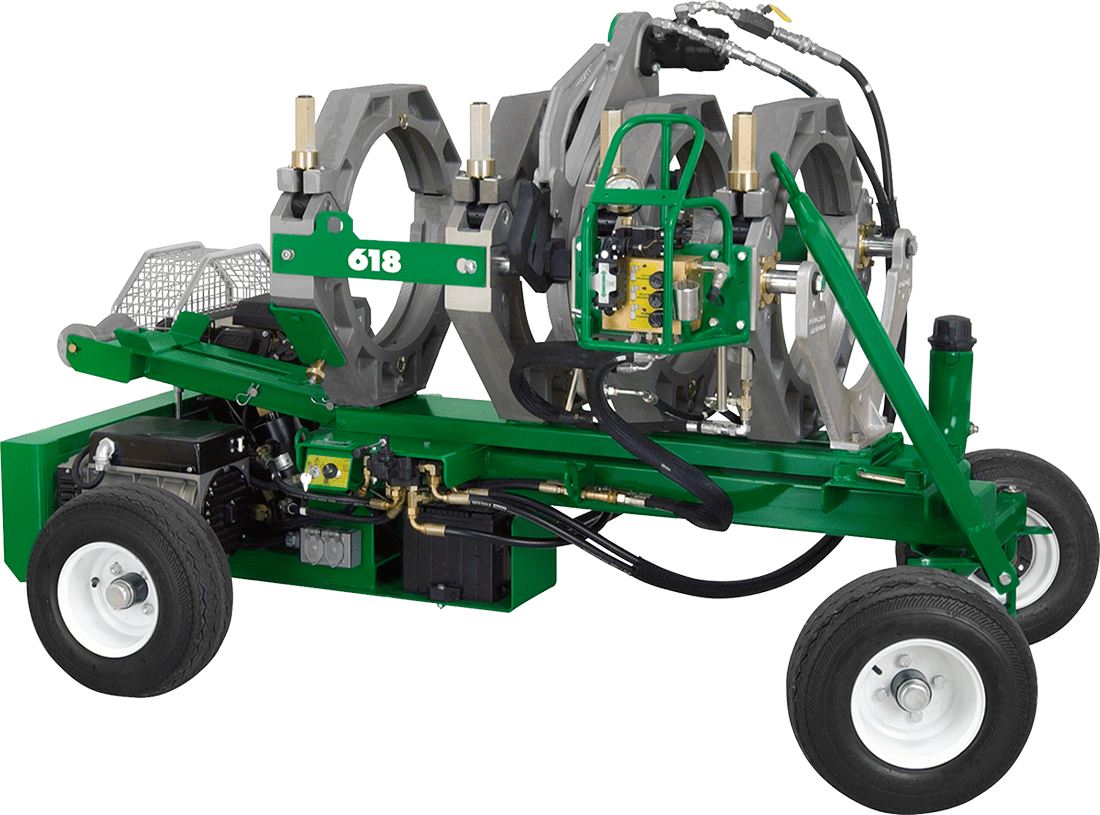

Rolling 618
Available for purchase or rental
Rolling 618 bridges the gap between small and large diameter fusion. The machine offers added versatility with a removable fourth jaw for compact, in-ditch use. McElroy Rolling 618 machines are DataLogger® compatible.
Resources:
Data Sheet
Operations Manual
Welding Parameters
Ideal Applications Include:
Please refer to the Welding Selection Chart for ideal applications.
Specifications:
Size Range:
160 – 450mm (6″ IPS – 18″ OD)
Piping:
Materials:
Power:
220 – 240V
Dimensions:
83″ x 50″ x 57″
Weight:
Machine: 1100 lbs.
Vehicle: 495 lbs.
Shipping Dimensions:
90″ x 60″ x 63″
Shipping Weight:
2050 lbs.
- Patented Centerline Guidance System for equal distribution of force around the joint
- Industry standard semi-automatic hydraulic control system
- ISO-compliant industrial Teflon-coated plates
- On-board generator for powering heater and other devices
- Removable 3- or 4-jaw carriage for in-ditch use
- Dual hydraulic pipe lifts
- Serrated jaws and inserts keep pipe from slipping during fusion
- Hydraulic clamping available
- Powerful hydraulic facer for facing the toughest pipe with ease
- Hard-anodized aluminum wear surfaces for corrosion resistance
- DataLogger® compatible
- Microprocessor-controlled heater
- Thrust-bearing-equipped clamp knobs to minimize force required to clamp and round pipe
