Miniplast® System powered by the McElroy Polygon™ LT
Click to enlarge

Butt Welding

Miniplast® System powered by the McElroy Polygon™ LT

Available for purchase or rental

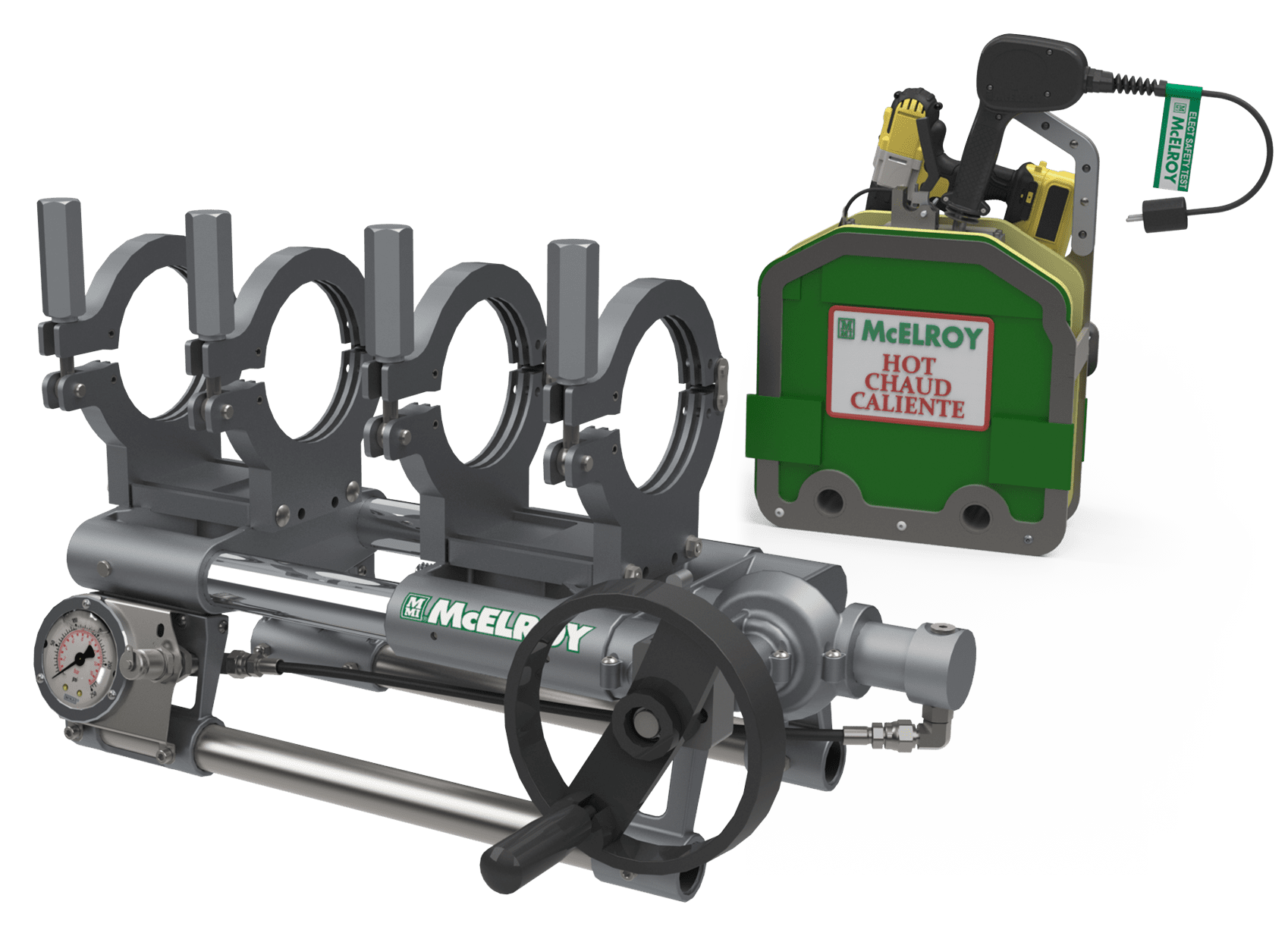

The Miniplast® System powered by the McElroy Polygon™ LT is a compact tool with a fast open/close time to perform butt fusions on 20mm to 110mm pipe. The Miniplast® System powered by the McElroy Polygon™ LT has a hydraulic port for DataLogger® connection.

Resources:

Data Sheet

Operations Manual

Welding Parameters

Ideal Applications Include:

Please refer to the Welding Selection Chart for ideal applications.

Specifications:

Size Range:

20mm – 110mm (1/2″ – 4″ nominal)

Piping:

See Welding Selection Chart

Materials:

See Welding Selection Chart

Power:

120V

Dimensions:

25″ x 17″ x 13″

Weight:

56 lbs.

Shipping Dimensions:

28″ x 22″ x 15″

Shipping Weight:

130 lbs.

  • Quick-clamp, pivoting jaws for faster, easier setup
  • Quick open/close wheel drive for smooth jaw movement
  • Drive mechanism includes new internal spring and shaft brake, providing fine control of low fusion pressure and the ability to lock it in place
  • Capable of up to 250psi fusion pressure
  • Power required only for the heater; battery-operated drill powers the facer
  • DataLogger® compatible
  • Side-positioned wheel drive
  • Sturdy travel case for easy transport of entire machine and accessories
  • Butt Fusion
  • Use of the DataLogger® with the Miniplast® System powered by the McElroy Polygon™ LT will record the weld process from start to finish.
