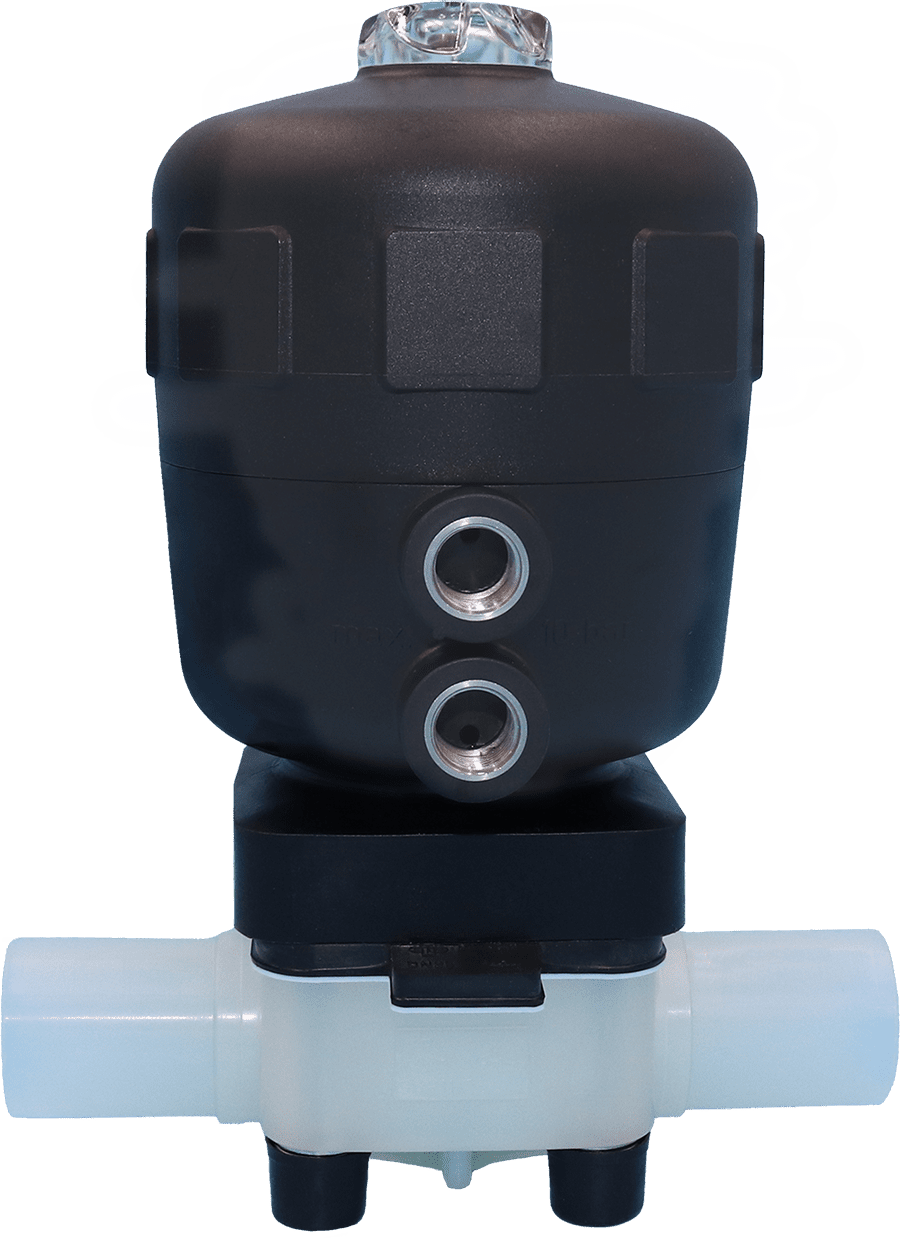

T-342/T-343 Actuated Diaphragm Valve
Click to enlarge

High Purity Valves

T-342/T-343 Actuated Diaphragm Valve

The T-342 and T-343 High Purity diaphragm valves offer reliable, compact, and corrosion-resistant actuation. These valves are rated for 150 psi at 68°F and are designed to perform in high-temperature environments. Additionally, they are fully serviceable, with replacement diaphragms available.

Resources:

Data Sheet

Ideal Applications Include:

Isolation & Throttling Valves, UPW, WFI, RO/DI Systems, Semiconductor, Photovoltaic, Pharmaceutical, Biotech, Institutional, Laboratory Research, Nanotech

Supply Range:

Purad® UHP PVDF

T-342/T-343 actuated diaphragm valves: (1/2″ x 1/2″ – 6″ x 2″)

PolyPure® Natural Polypropylene

T-342/T-343 actuated diaphragm valves: (2″ x 1/2″ – 2″ x 1″)

PP-Pure® Pigmented Polypropylene

T-342/T-343 actuated diaphragm valves: (1/2″ x 1/2″ – 4″ x 1″)

  • Compact and corrosion resistant polyamide body
  • Robust piston style designed for longevity
  • No wetted metal components
  • Visual position indicator
  • Low energy consumption via the use of volume fillers
  • Sealed construction to protect internals from corrosive environments
  • Assembled in a clean environment and shipped double bagged
  • Wide range of sizes and configurations
  • Air-to-spring (Open & Closed)
  • Air-to-air
  • Min/max stroke limiter
  • Electric position feedback
  • Magnetic position feedback
  • Manual override handwheel
